FP75R07 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE 650V 75A

Part	Supplier Device Package	Input Capacitance (Cies) @ Vce	Input	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	IGBT Type
INFINEON FP75R07N2E4B11BOSA1	Module	4.6 nF	Standard	Three Phase Inverter	650 V	1 mA	Module	Chassis Mount	-40 C	150 °C	75 A	1.95 V	Trench Field Stop
INFINEON FP75R07N2E4BOSA1	Module	4.6 nF	Standard	Three Phase Inverter	650 V	1 mA	Module	Chassis Mount	-40 C	150 °C	95 A	1.95 V	Trench Field Stop

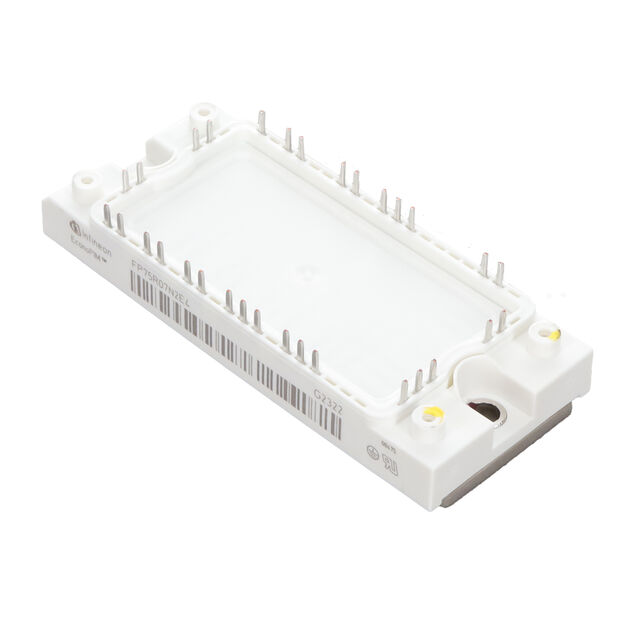

INFINEON FP75R07N2E4BPSA1	AG-ECONO2B	4.6 nF	Three Phase Bridge Rectifier	Three Phase Inverter	650 V	1 mA	Module	Chassis Mount	-40 °C	150 °C	95 A	1.95 V	Trench Field Stop
