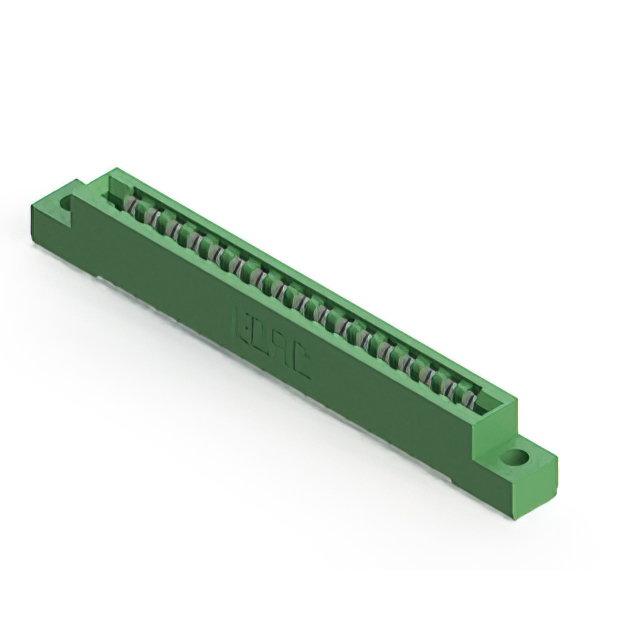

807-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 17POS 0.156
| Part | Material - Insulation | Termination Rows | Gender | Contact Material | Read Out | Color | Pitch | Pitch | Number of Rows | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Single | Green | 3.96 mm | 0.156 in | 1 | Semi Bellows | Wire Wrap | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | 125 °C | -40 C | Gold | 17 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Dual | Green | 3.96 mm | 0.156 in | Semi Bellows | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Dual Edge | 125 °C | -40 C | Tin | 17 | 34 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Dual | Green | 3.96 mm | 0.156 in | Semi Bellows | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Dual Edge | 125 °C | -40 C | Tin | 17 | 34 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Dual | Green | 3.96 mm | 0.156 in | Semi Bellows | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | 125 °C | -40 C | Tin | 17 | 34 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Single | Green | 3.96 mm | 0.156 in | 1 | Semi Bellows | Wire Wrap | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | 125 °C | -40 C | Gold | 17 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Dual | Green | 3.96 mm | 0.156 in | Semi Bellows | Solder | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Dual Edge | 125 °C | -40 C | Gold | 17 | 34 | 2 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Single | Green | 3.96 mm | 0.156 in | 1 | Semi Bellows | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Single Edge | 125 °C | -40 C | Tin | 17 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Single | Green | 3.96 mm | 0.156 in | 1 | Semi Bellows | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | 125 °C | -40 C | Gold | 17 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Dual | Green | 3.96 mm | 0.156 in | Semi Bellows | Solder | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Dual Edge | 125 °C | -40 C | Gold | 17 | 34 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | Single | Green | 3.96 mm | 0.156 in | 1 | Semi Bellows | Solder | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | 125 °C | -40 C | Gold | 17 |
