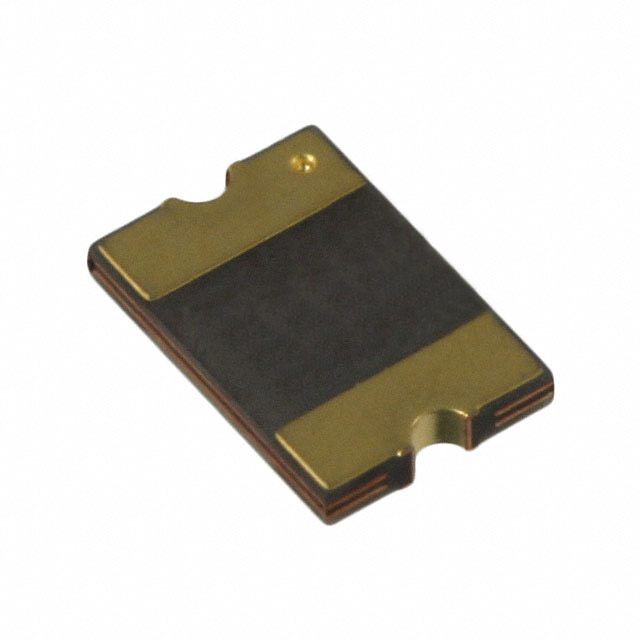

MF-MSMF Series

Catalog

PTC RESETTABLE FUSE 0.75A(HOLD) 1.5A(TRIP) 24V 40A 0.8W 0.2S 0.11OHM SMD SOLDER PAD 1812 T/R AUTOMOTIVE AEC-Q200

Part	Qualification	Approval Agency	Thickness (Max) [Max]	Thickness (Max) [Max]	Grade	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Type	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Current - Hold (Ih) (Max)	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Quantity	Voltage Rating [Max]	Voltage Rating [Min]	Kit Type	Packages Included	Packages Included
Bourns Inc. MF-MSMF075/24-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	24 V	0.179 in	3.24 mm	0.128 "	4.55 mm	AEC-Q200	85 °C	-40 C	1812 (4532 Metric) Concave	750 mA	40 A	0.2 s	450 mOhms	Surface Mount	Polymeric	1.5 A	0.11 Ohms
Bourns Inc. MF-MSMF125-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	6 V	0.179 in	3.24 mm	0.128 "	4.55 mm		85 °C	-40 C	1812 (4532 Metric) Concave		100 A	400 ms	140 mOhms	Surface Mount	Polymeric	2.5 A	35 mOhms	1.25 A
Bourns Inc. MF-MSMF150/24X-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	24 V	0.179 in	3.24 mm	0.128 "	4.55 mm	AEC-Q200	85 °C	-40 C	1812 (4532 Metric) Concave	1.5 A	20 A	1.5 s	120 mOhms	Surface Mount	Polymeric	3 A	30 mOhms
Bourns Inc. MF-MSMF160-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	8 V	0.179 in	3.24 mm	0.128 "	4.55 mm		85 °C	-40 C	1812 (4532 Metric) Concave		100 A	2 s	99 mOhms	Surface Mount	Polymeric	2.8 A	35 mOhms	1.6 A
Bourns Inc. MF-MSMF260-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	6 V	0.179 in	3.24 mm	0.128 "	4.55 mm		85 °C	-40 C	1812 (4532 Metric) Concave	2.6 A	100 A	5 s	80 mOhms	Surface Mount	Polymeric	5.2 A	15 mOhms
Bourns Inc. MF-MSMF050/40X-2	AEC-Q200	cUL cURus	0.85 mm	0.033 in	Automotive	40 V	0.179 in	3.24 mm	0.128 "	4.55 mm	AEC-Q200	85 °C	-40 C	1812 (4532 Metric) Concave	500 mA	20 A	0.2 s	1.3 Ohms	Surface Mount	Polymeric	1 A	150 mOhms
Bourns Inc. MF-MSMF250/16-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	16 V	0.179 in	3.24 mm	0.128 "	4.55 mm		85 °C	-40 C	1812 (4532 Metric) Concave		100 A	5 s	100 mOhms	Surface Mount	Polymeric	5 A	15 mOhms	2.5 A

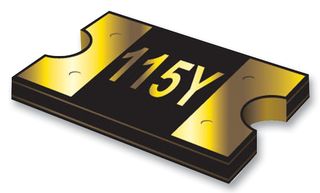

Bourns Inc. MF-MSMF110-2	AEC-Q200	cURus TUV	0.85 mm	0.033 in	Automotive	6 V	0.181 in	3.24 mm	0.128 "	4.6 mm		85 °C	-40 C	1812 (4532 Metric) Concave	1.1 A	100 A	0.3 s	210 mOhms	Surface Mount	Polymeric	2.2 A	40 mOhms
Bourns Inc. MF-MSMF020/60-2	AEC-Q200	cURus TUV	1.1 mm	0.043 "	Automotive	60 V	0.179 in	3.24 mm	0.128 "	4.55 mm	AEC-Q200	85 °C	-40 C	1812 (4532 Metric) Concave	200 mA	40 A	150 ms	6 Ohms	Surface Mount	Polymeric	400 mA	400 mOhms

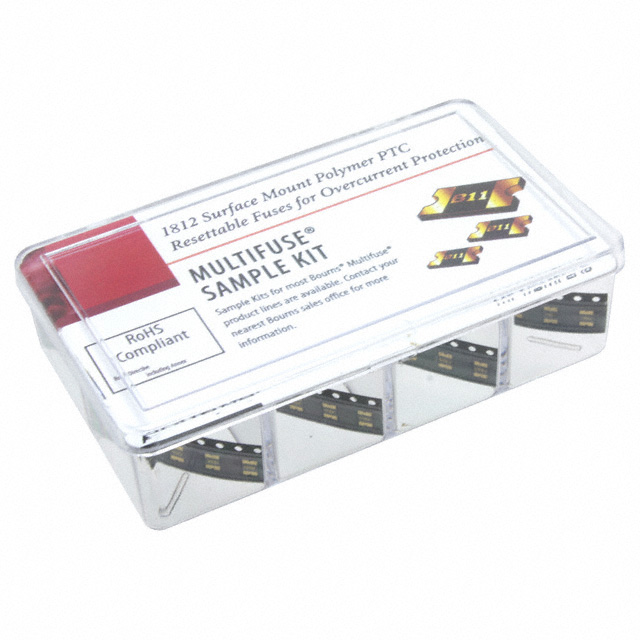

Bourns Inc. MF-MSMFLAB																			Surface Mount					2.5 A	0.1 A	40 Pieces	60 VDC	6 VDC	PTC Resettable	1812	4532
