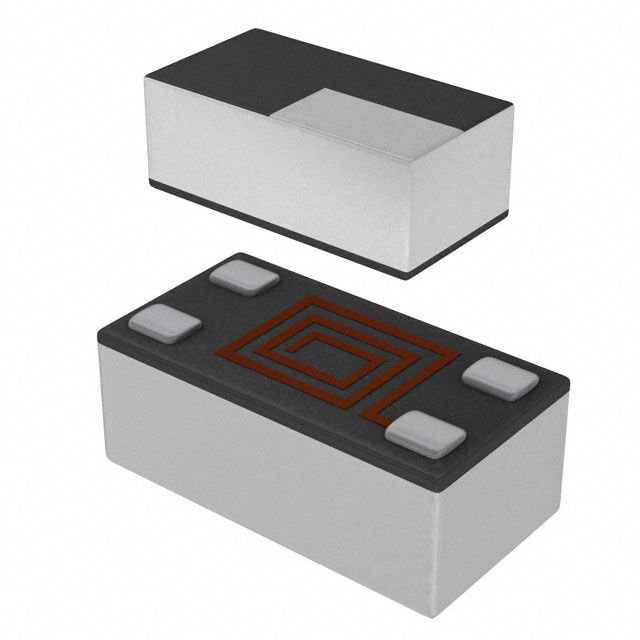

LP Series

Catalog

SIGNAL CONDITIONING 947MHZ 0603 SIZE

Part	Filter Type	Package / Case	Package / Case	Height (Max) [Max] [z]	Height (Max) [z]	Insertion Loss	Frequency	Mounting Type	Bandwidth	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]
KYOCERA AVX LP0603A0947ANTR	Low Pass	0603 (1608 Metric)	4 PC Pad	0.028 in	0.7 mm	0.35 dB	947.5 MHz	Surface Mount	25 MHz	0.84 mm	1.6 mm	0.033 "	0.063 "
KYOCERA AVX LP0603A2140ALTR	Low Pass	0603 (1608 Metric)	4 PC Pad	0.028 in	0.7 mm	0.3 dB	2.14 GHz	Surface Mount	60 MHz	0.84 mm	1.6 mm	0.033 "	0.063 "
KYOCERA AVX LP0805A2590ASTR		0805 (2012 Metric)	4 PC Pad		1.12 mm			Surface Mount		0.061 in 1.55 mm	0.08 in 2.03 mm			0.044 in
KYOCERA AVX LP0805H4000ASTR		0805 (2012 Metric)	4 PC Pad		1.12 mm			Surface Mount		0.061 in 1.55 mm	0.08 in 2.03 mm			0.044 in
KYOCERA AVX LP0603N3500ANTR	Low Pass	0603 (1608 Metric)	4 PC Pad	0.028 in	0.7 mm	0.3 dB	3.5 GHz	Surface Mount	200 MHz	0.84 mm	1.6 mm	0.033 "	0.063 "
KYOCERA AVX LP0805A1842ASTR	Low Pass	0805 (2012 Metric)	4 PC Pad		1.12 mm	0.3 dB	1.843 GHz	Surface Mount	75 MHz	0.061 in 1.55 mm	0.08 in 2.03 mm			0.044 in
KYOCERA AVX LP0603A0950ANTR	Low Pass	0603 (1608 Metric)	4 PC Pad	0.028 in	0.7 mm		950 MHz	Surface Mount		0.84 mm	1.6 mm	0.033 "	0.063 "
KYOCERA AVX LP0805A1960AWTR	Low Pass	0805 (2012 Metric)	4 PC Pad		1.12 mm	0.3 dB	1.96 GHz	Surface Mount	60 MHz	0.061 in 1.55 mm	0.08 in 2.03 mm			0.044 in
