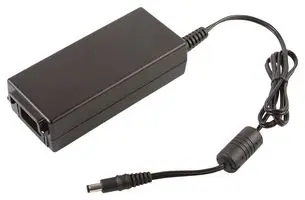

ALM65 Series

Manufacturer: XP Power

Catalog

AC/DC DESKTOP ADAPTER 48V 65W

Part	Weight	Weight	Cord Length	Cord Length	Applications	Operating Temperature [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Form	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output	Efficiency	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized	Polarization	Input Type	No Load Power Consumption	Input Connector	Approval Agency
XP Power ALM65US48	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class I)	65 W	1.35 A	48 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C14	CB CE
XP Power ALM65US19C2-8	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class II)	65 W	3.4 A	19 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C8	CB CE
XP Power ALM65US48C2-8	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class II)	65 W	1.35 A	48 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C8	CB CE
XP Power ALM65US15	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class I)	65 W	4.3 A	15 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C14	CB CE
XP Power ALM65US24	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class I)	65 W	2.7 A	24 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C14	CB CE
XP Power ALM65US15C2-8	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class II)	65 W	4.3 A	15 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C8	CB CE
XP Power ALM65US12C2-8	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class II)	65 W	5.4 A	12 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C8	CB CE
XP Power ALM65US24C2-8	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class II)	65 W	2.7 A	24 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C8	CB CE
XP Power ALM65US19	308.44 g	0.68 lb	0.9 m	35.4 in	ITE (Commercial) Medical	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	80 VAC	264 VAC	Desktop (Class I)	65 W	3.4 A	19 V	Level VI	60601-1; 62368-1	1.32 in 33.5 mm	4.94 in 125.5 mm	2.19 in 55.5 mm	International	Positive Center	Cord (Sold Separately)	210 mW	IEC 320-C14	CB CE
