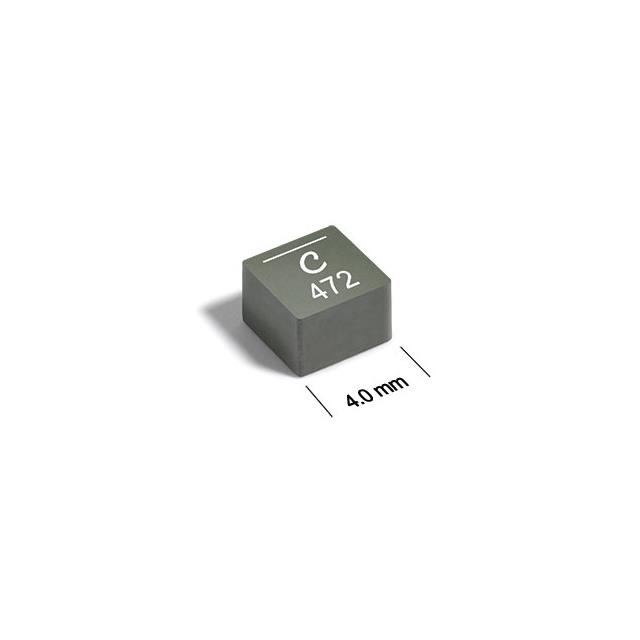

XEL Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 560NH SHLD 20% 27.7A 2.9MOHMS AECQ2
| Part | Type | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance Frequency - Test | Ratings | Shielding | Material - Core | Mounting Type | Current Rating (Amps) | DC Resistance (DCR) [Max] | Tolerance | Current - Saturation (Isat) | Frequency - Self Resonant | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Molded | 560 nH | 6.56 mm | 0.25 in | 0.258 " | 6.36 mm | 1 MHz | AEC-Q200 | Shielded | Metal Composite | Surface Mount | 27.7 A | 2.9 mOhm | 20 % | 23 A | 59 MHz | 6.1 mm | 0.24 " | 125 °C | -40 C | Nonstandard | |
 Coilcraft | Molded | 12 µH | 6.56 mm | 0.25 in | 0.258 " | 6.36 mm | 1 MHz | AEC-Q200 | Shielded | Metal Composite | Surface Mount | 7.4 A | 40.33 mOhm | 20 % | 5.8 A | 12 MHz | 6.1 mm | 0.24 " | 125 °C | -40 C | Nonstandard | |
 Coilcraft | Molded | 3.3 µH | 4 mm | 0.157 " | 0.157 in | 4 mm | 1 MHz | AEC-Q200 | Shielded | Metal Composite | Surface Mount | 6.6 A | 28.6 mOhm | 20 % | 5.9 A | 35 MHz | 3.1 mm | 0.122 in | 125 °C | -40 C | 1616 (4040 Metric) | 1616 |
Coilcraft | Molded | 640 nH | 4 mm | 0.157 " | 0.157 in | 4 mm | 1 MHz | AEC-Q200 | Shielded | Metal Composite | Surface Mount | 13.7 A | 5.9 mOhm | 20 % | 13.5 A | 80 MHz | 3.1 mm | 0.122 in | 125 °C | -40 C | 1616 (4040 Metric) | 1616 |
