ADTSM6 Series

Manufacturer: APEM Inc.

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Actuator Material	Outline [x]	Outline [y]	Contact Rating @ Voltage	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Switch Function	Mounting Type	Circuit	Actuator Orientation	Operating Force	Actuator Height off PCB, Vertical [z]	Features	Actuator Height off PCB, Vertical
APEM Inc. ADTSM65SV	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	320 gf	9.5 mm	Tactile Feedback
APEM Inc. ADTSM61NV	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	160 gf	4.3 mm	Tactile Feedback
APEM Inc. ADTSM62NVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	160 gf	5 mm	Tactile Feedback
APEM Inc. ADTSM62RSVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	260 gf	5 mm	Tactile Feedback
APEM Inc. ADTSM62KSVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	100 gf	5 mm	Tactile Feedback

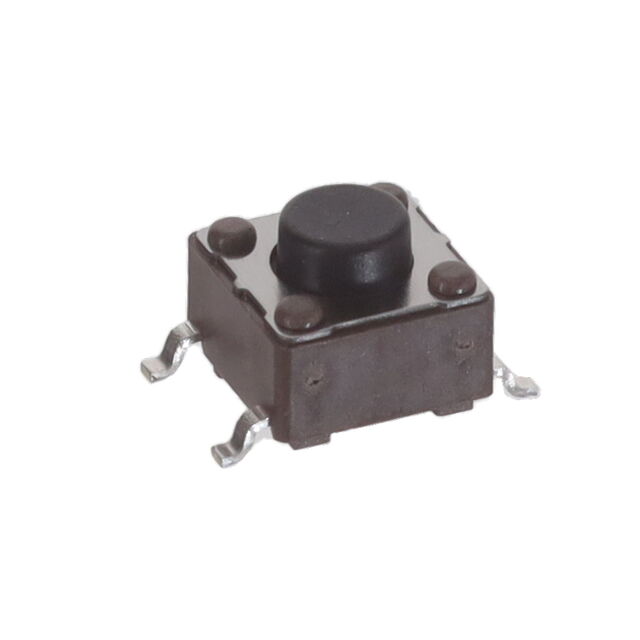

APEM Inc. ADTSM62KVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	100 gf	5 mm	Tactile Feedback
APEM Inc. ADTSM644SV	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Plunger for Cap	Off-Mom	Surface Mount	SPST-NO	Top Actuated	320 gf	7.3 mm	Tactile Feedback
APEM Inc. ADTSM648YVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Plunger for Cap	Off-Mom	Surface Mount	SPST-NO	Top Actuated	520 gf	7.3 mm	Tactile Feedback
APEM Inc. ADTSM61KVTR	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	100 gf	4.3 mm	Tactile Feedback
APEM Inc. ADTSM66RV	0.25 mm	Polyamide (PA) Nylon	6.2 mm	6.2 mm	0.05 A 12 VDC	Non-Illuminated	-25 °C	70 °C	Gull Wing	Standard	Off-Mom	Surface Mount	SPST-NO	Top Actuated	260 gf		Tactile Feedback	13 mm
