AD5755 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

QUAD CHANNEL, 16-BIT, SERIAL INPUT, 4 MA TO 20 MA AND VOLTAGE OUTPUT DAC, DYNAMIC POWER CONTROL

Part	Settling Time	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Differential Output	Output Type	Reference Type	Mounting Type	INL/DNL (LSB) (Max)	Number of D/A Converters	Package Length	Package Name	Package Width	Number of Bits	Data Interface	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Package / Case	Architecture	INL (Max) (LSB)	DNL (Max) (LSB)	INL (LSB) Tolerance	DNL (LSB) Tolerance	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Supplied Contents	Number of DAC's	Contents	DAC Type	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD5755ACPZ	18 µs	-40 °C	105 °C	2.7 V	5.5 V	No	Current - Unbuffered Voltage - Buffered	External Internal	Surface Mount	1 LSB	4 count	9 mm	64-LFCSP-VQ	9 mm	16 bits	DSP SPI	-10.8 V	9 V	33 V	26.4 V	64-VFQFN Exposed Pad CSP	R-2R
Analog Devices Inc./Maxim Integrated AD5755BCPZ	18 µs	-40 °C	105 °C	2.7 V	5.5 V	No	Current - Unbuffered Voltage - Buffered	External Internal	Surface Mount		4 count	9 mm	64-LFCSP-VQ	9 mm	16 bits	DSP SPI					64-VFQFN Exposed Pad CSP	R-2R	1 LSB	1 LSB	1 LSB	1 LSB	33 V	9 V

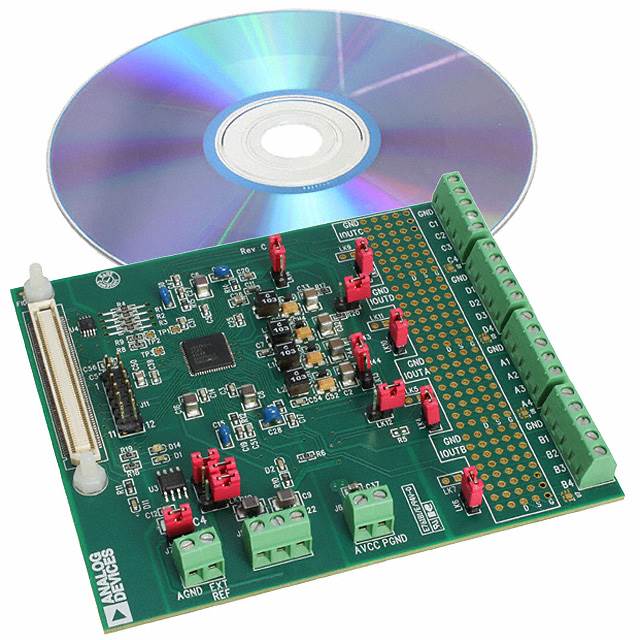

Analog Devices Inc./Maxim Integrated EVAL-AD5755-1SDZ	11 µs														16 bits	Serial													Board(s)	4	Board	Current Voltage	AD5755
Analog Devices Inc./Maxim Integrated AD5755BCPZ-REEL7	18 µs	-40 °C	105 °C	2.7 V	5.5 V	No	Current - Unbuffered Voltage - Buffered	External Internal	Surface Mount	1 LSB	4 count	9 mm	64-LFCSP-VQ	9 mm	16 bits	DSP SPI	-10.8 V	9 V	33 V	26.4 V	64-VFQFN Exposed Pad CSP	R-2R
Analog Devices Inc./Maxim Integrated AD5755ACPZ-REEL7	18 µs	-40 °C	105 °C	2.7 V	5.5 V	No	Current - Unbuffered Voltage - Buffered	External Internal	Surface Mount	1 LSB	4 count	9 mm	64-LFCSP-VQ	9 mm	16 bits	DSP SPI	-10.8 V	9 V	33 V	26.4 V	64-VFQFN Exposed Pad CSP	R-2R
