060-P186 Series

Catalog

SENSOR, PRESSURE, 6000PSI, 1 PORT, NPS

Part	Termination Style	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Size	Port Size	Port Size	Applications	Operating Pressure	Operating Pressure	Port Style	Output Type	Features	Maximum Pressure	Maximum Pressure

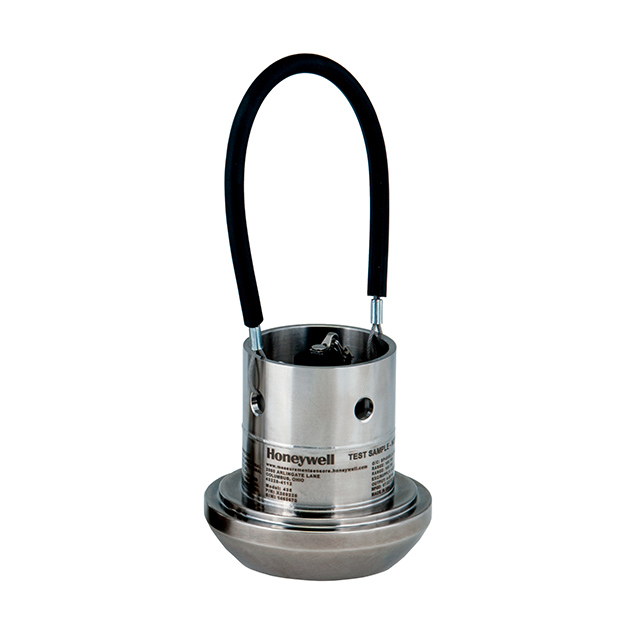

Honeywell Sensing and Productivity Solutions 060-P186-04	Connector	4 mA	20 mA	9 V	28 V	Vented Gauge	125 °C	-40 C	62052.82 kPa	9000 PSI	0.2 %	Male - Tube	2 in	51 mm	Industrial Automation	6000 PSI	41368.54 kPa	Weco® 1502 Hammer Union	Analog Current	Temperature Compensated

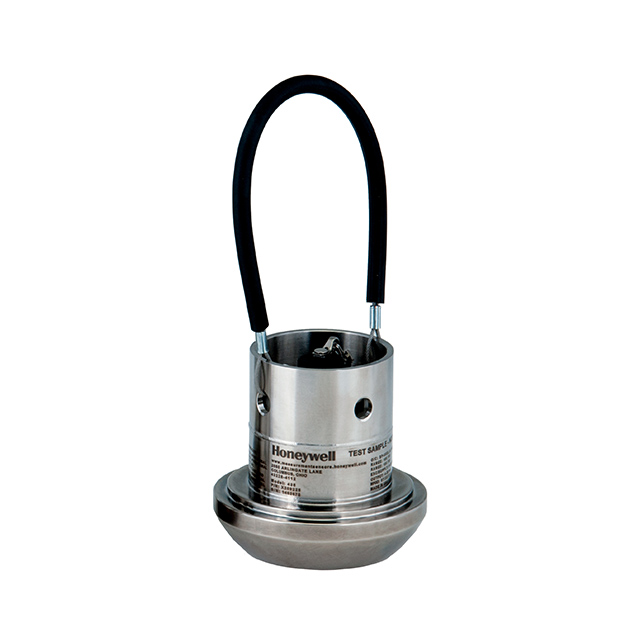

Honeywell Sensing and Productivity Solutions 060-P186-01	Connector	4 mA	20 mA	9 V	28 V	Vented Gauge	125 °C	-40 C	51710.68 kPa	7500 PSI	0.2 %	Male - Tube	2 in	51 mm	Industrial Automation	5000 PSI	34473.79 kPa	Weco® 1502 Hammer Union	Analog Current	Temperature Compensated
Honeywell Sensing and Productivity Solutions 060-P186-03	Connector	4 mA	20 mA	9 V	28 V	Vented Gauge	125 °C	-40 C			0.2 %	Male - Tube	2 in	51 mm	Industrial Automation	15000 PSI	103421.36 kPa	Weco® 1502 Hammer Union	Analog Current	Temperature Compensated	22500 PSI	155132.04 kPa
Honeywell Sensing and Productivity Solutions 060-P186-02	Connector	4 mA	20 mA	9 V	28 V	Vented Gauge	125 °C	-40 C			0.2 %	Male - Tube	2 in	51 mm	Industrial Automation	10000 PSI	68947.57 kPa	Weco® 1502 Hammer Union	Analog Current	Temperature Compensated	15000 PSI	103421.36 kPa
