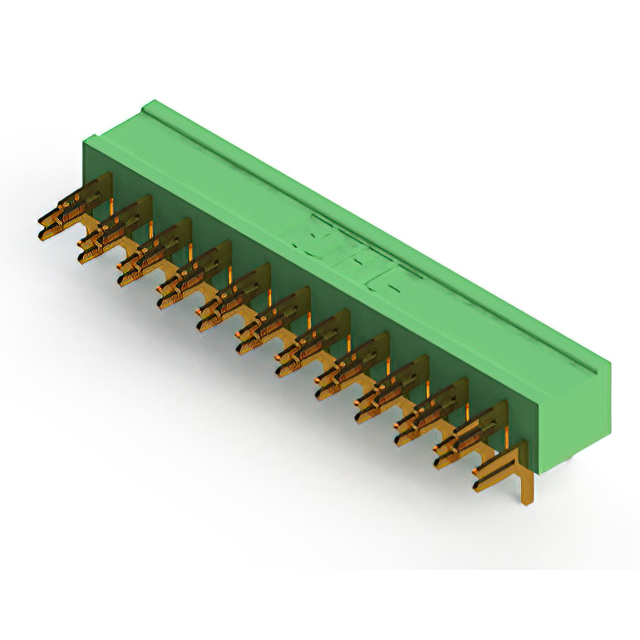

422-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 23POS 0.200
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Gender | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Color | Contact Material | Mounting Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 5.08 mm | 0.2 in | 23 | 0.25 Ám | 10 Áin | 2 | Female | Solder | -65 ░C | 125 °C | Non Specified - Dual Edge | Green | Copper Alloy | Right Angle Through Hole | Gold | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 5.08 mm | 0.2 in | 23 | 0.25 Ám | 10 Áin | 2 | Female | Solder | -65 ░C | 125 °C | Non Specified - Dual Edge | Green | Copper Alloy | Right Angle Through Hole | Gold | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm |
