396-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 8POS 0.125
| Part | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Read Out | Mounting Type | Number of Positions | Contact Material | Gender | Contact Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Card Type | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Wire Wrap | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.18 mm | 0.125 in | Single | Right Angle Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder Wire Wrap | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 3.18 mm | 0.125 in | Single | Through Hole | 8 | Copper Alloy | Female | Cantilever | Wire Wrap | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | |

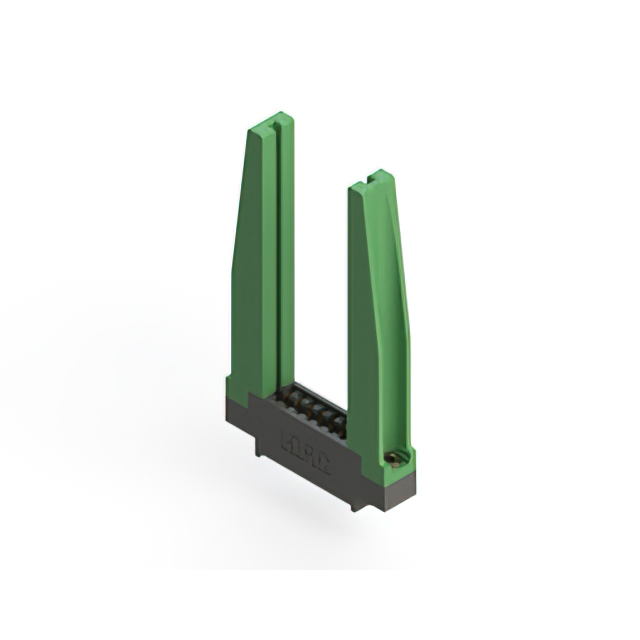

 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 3.18 mm | 0.125 in | Single | Right Angle Through Hole | 8 | Copper Alloy | Female | Cantilever | Solder Wire Wrap | -40 C | 105 ░C | 8 | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 1 | 0.25 Ám | 10 Áin | Card Guides |
