FFC2A32 Series

Manufacturer: GCT

Catalog

CONN FFC FPC VERT 6POS 0.5MM SMD

Part	Housing Color	Actuator Color	Current Rating (Amps)	Mating Cycles	Locking Feature	Actuator Material	Mounting Type	Height Above Board [z]	Height Above Board [z]	Features	FFC, FCB Thickness	Cable End Type	Material Flammability Rating	Termination	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Contact Finish	Connector/Contact Type	Voltage Rating	Pitch	Pitch	Flat Flex Type	Contact Finish Thickness

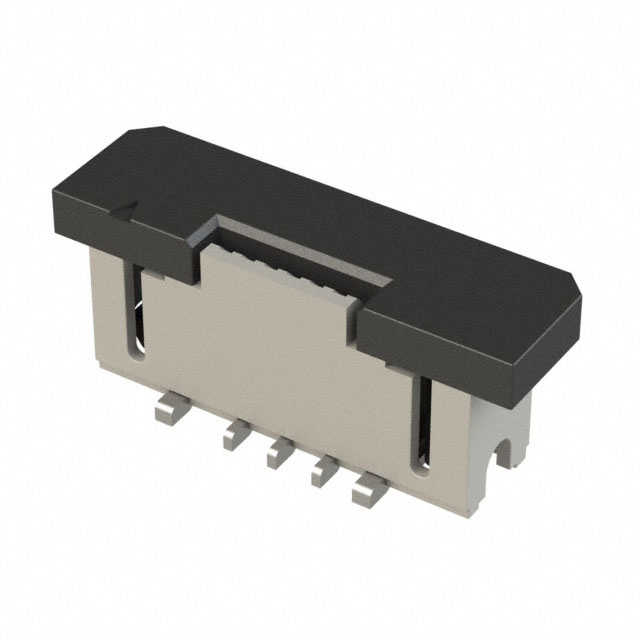

GCT FFC2A32-06-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	6	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC

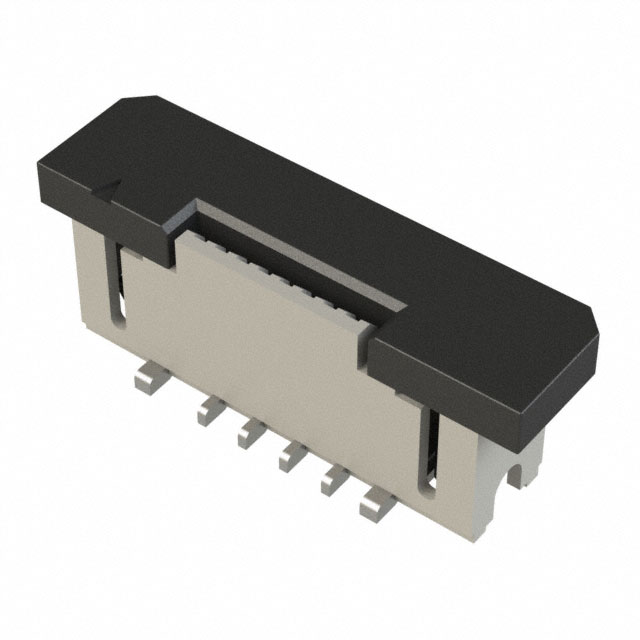

GCT FFC2A32-08-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	8	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC

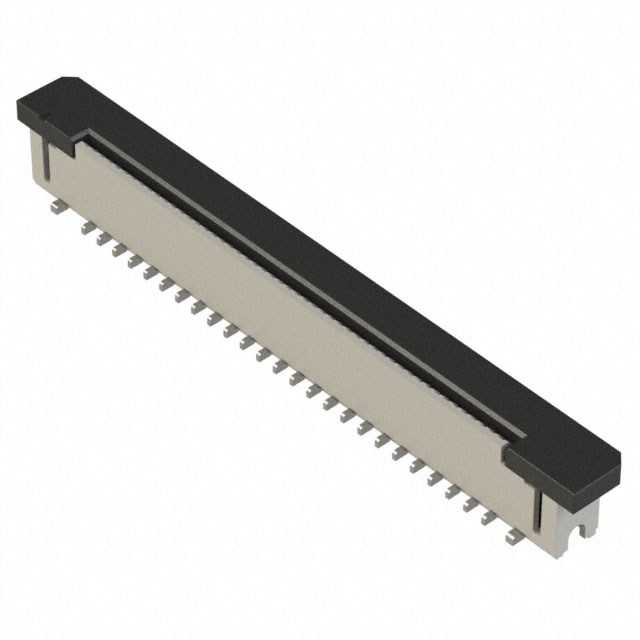

GCT FFC2A32-50-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	50	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC

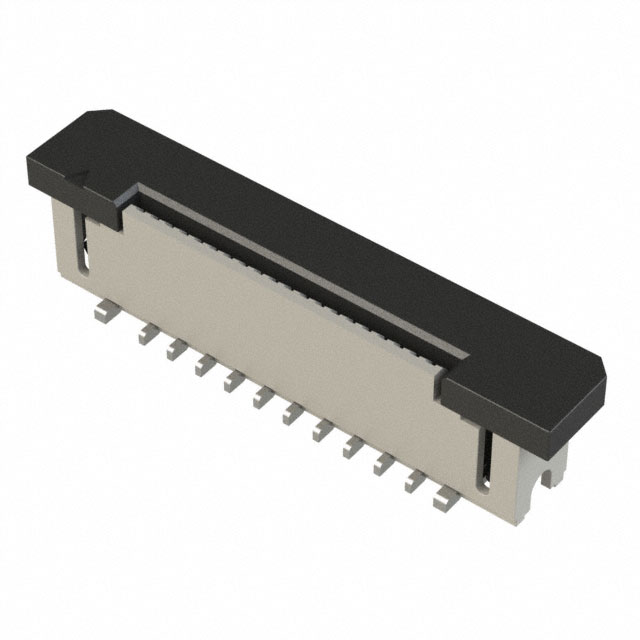

GCT FFC2A32-20-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	20	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC

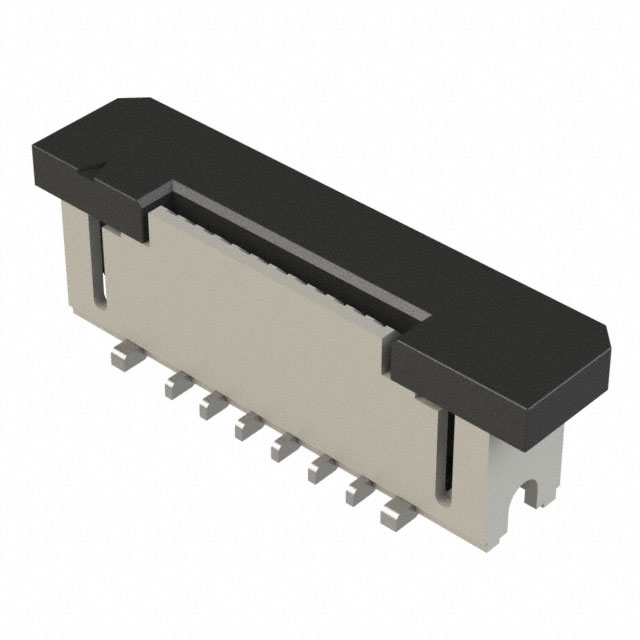

GCT FFC2A32-12-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	12	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC
GCT FFC2A32-10-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	10	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC

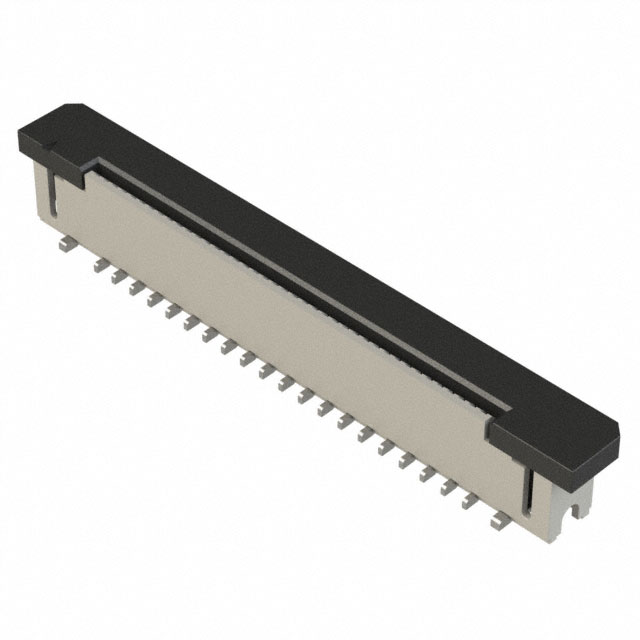

GCT FFC2A32-40-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	40	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC
GCT FFC2A32-24-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	24	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC
GCT FFC2A32-30-T	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	30	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC
GCT FFC2A32-06-G	Natural	Black	0.2 A	20	Slide Lock	Liquid Crystal Polymer (LCP)	Surface Mount	0.167 in	4.25 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	Tapered	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	85 °C	-25 °C	6	Phosphor Bronze	Gold	Contacts Vertical - 1 Sided	30 VDC	0.02 "	0.5 mm	FFC FPC	Flash
