TSPB15 Series

Catalog

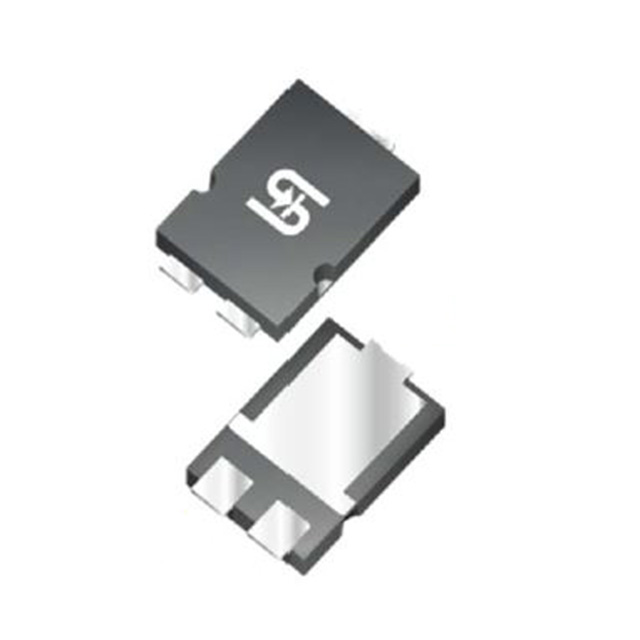

DIODE SCHOTTKY 50V 15A SMPC4.0

Part	Mounting Type	Current - Average Rectified (Io)	Technology	Package / Case	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr
Taiwan Semiconductor Corporation TSPB15U50S S1G	Surface Mount	15 A	Schottky	TO-277 3-PowerDFN	SMPC4.0	-55 °C	150 °C	200 mA 500 ns	50 V	560 mV	2 mA
Taiwan Semiconductor Corporation TSPB15U45S	Surface Mount	15 A	Schottky	TO-277 3-PowerDFN	SMPC4.0	-55 °C	150 °C	200 mA 500 ns	45 V	560 mV	300 µA
Taiwan Semiconductor Corporation TSPB15U100S S2G	Surface Mount	15 A	Schottky	TO-277 3-PowerDFN	SMPC4.0	-55 °C	150 °C	200 mA 500 ns	100 V	700 mV	250 µA
Taiwan Semiconductor Corporation TSPB15U45S S1G	Surface Mount	15 A	Schottky	TO-277 3-PowerDFN	SMPC4.0	-55 °C	150 °C	200 mA 500 ns	45 V	560 mV	300 µA
