FAG.3B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 6POS GOLD CRIMP

Part	Shell Material	Color	Shielding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Finish	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Fastening Type	Number of Positions	Shell Size - Insert	Material Flammability Rating	Mounting Feature	Primary Material	Mounting Type	Termination	Connector Type	Orientation [custom]	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Center Contact Plating	Body Finish	Dielectric Material	Number of Ports	Cable Group	Connector Style	Contact Termination	Shield Termination	Impedance	Housing Color	Shell Size - Insert [custom]

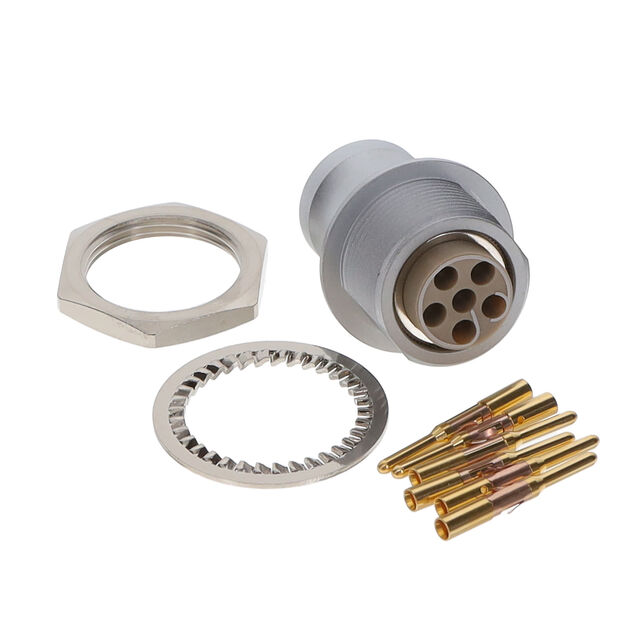

LEMO FAG.3B.306.CYC	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	17 A	Push-Pull	6	306	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount	Crimp	Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
LEMO FAG.3B.314.CLA	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	9 A	Push-Pull	14	314	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount		Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
LEMO FAG.3B.302.CLA	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	35 A	Push-Pull	2	302	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount		Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
LEMO FAG.3B.243.CLC2										Push-Pull				Bulkhead - Rear Side Nut		Panel Mount		Plug Male Pin			IP50 - Dust Protected	-55 C	250 °C	5000	Brass	Gold	Chrome	Polyetheretherketone (PEEK)	1	196A RG-178B	Coaxial	Solder Cup	Crimp	50 Ohms	Silver
LEMO FAG.3B.312.CLA	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	9 A	Push-Pull	12	312	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount		Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
LEMO FAG.3B.307.CLA	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	15 A	Push-Pull	7		UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount		Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C													307
LEMO FAG.3B.324.CLA	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	4 A	Push-Pull	24	324	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount		Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
LEMO FAG.3B.304.CYC	Brass	Silver	Shielded	39.4 µin	1 µm	Chrome	Gold	Brass	19 A	Push-Pull	4	304	UL94 V-0	Bulkhead - Rear Side Nut	Metal	Panel Mount	Crimp	Plug Male Pins	G	Polyetheretherketone (PEEK)	IP50 - Dust Protected	-55 C	250 °C
