TRXB060 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

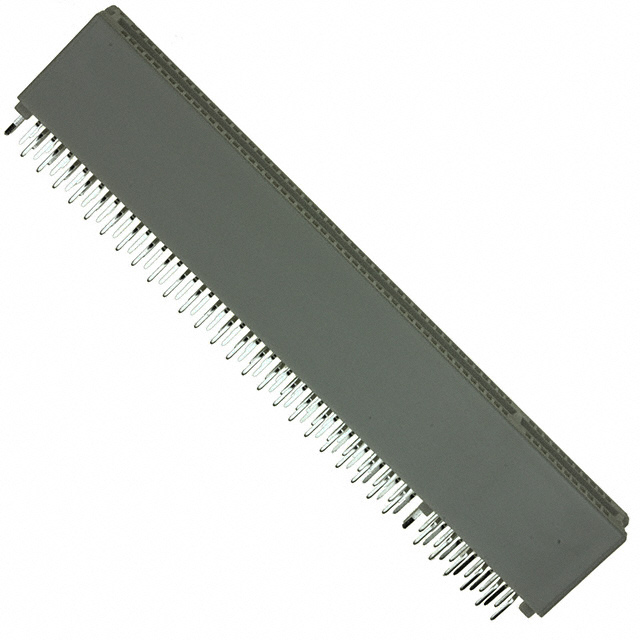

CONN PCI CARDEDGE FML 120P 0.050
| Part | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Color | Contact Finish | Pitch | Pitch | Contact Type | Read Out | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Rows [custom] | Card Thickness | Card Thickness | Gender | Termination | Card Type | Contact Material | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Thermoplastic Glass Filled | 30 Áin | 0.76 Ám | Through Hole | White | Gold | 0.05 in | 1.27 mm | Cantilever | Dual | Board Lock | -55 C | 85 °C | 120 | 2 | 1.57 mm | 0.062 in | Female | Solder | PCI™ | Phosphor Bronze | |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | Through Hole | Gold | 0.05 in | 1.27 mm | Cantilever | Dual | Board Lock | -55 C | 85 °C | 120 | 2 | 1.57 mm | 0.062 in | Female | Solder | PCI 5V 64 Bit | Phosphor Bronze | 5 V 64 Bit |
