UB216KK Series

Catalog

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Marking	Features	Switch Function	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Type	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB216KKW015D-1JB	10000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	125 V	5 A	30 V	Panel Mount Snap-In	Illuminated Standard	Clear	Amber LED	2 VDC
NKK Switches UB216KKG01N-5C	200000 Cycles	200000 Cycles	70 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Standard	Red
NKK Switches UB216KKG015C	200000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Plunger for Cap	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Illuminated Standard		LED Red	1.85 VDC
NKK Switches UB216KKG016G-1JB	200000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Illuminated Standard	Clear	Blue LED	2.9 VDC
NKK Switches UB216KKW016B-2B	10000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	125 V	5 A	30 V	Panel Mount Snap-In	Illuminated Standard	White	LED White	3.3 VDC
NKK Switches UB216KKG015C-1JB	200000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Illuminated Standard	Clear	LED Red	1.85 VDC
NKK Switches UB216KKG016B-1JB	200000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Illuminated Standard	Clear	LED White	3.3 VDC

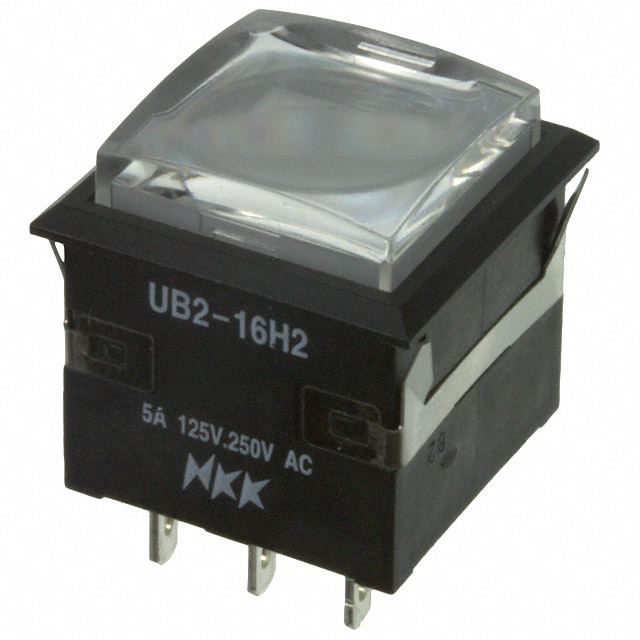

NKK Switches UB216KKW016CF-1JB	10000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	125 V	5 A	30 V	Panel Mount Snap-In	Illuminated Standard	Clear	Green/Red LED	2.1 VDC 3.5 VDC
NKK Switches UB216KKG015C-3JC	200000 Cycles	200000 Cycles	50 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Button Square	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Illuminated Standard	Clear	LED Red	1.85 VDC

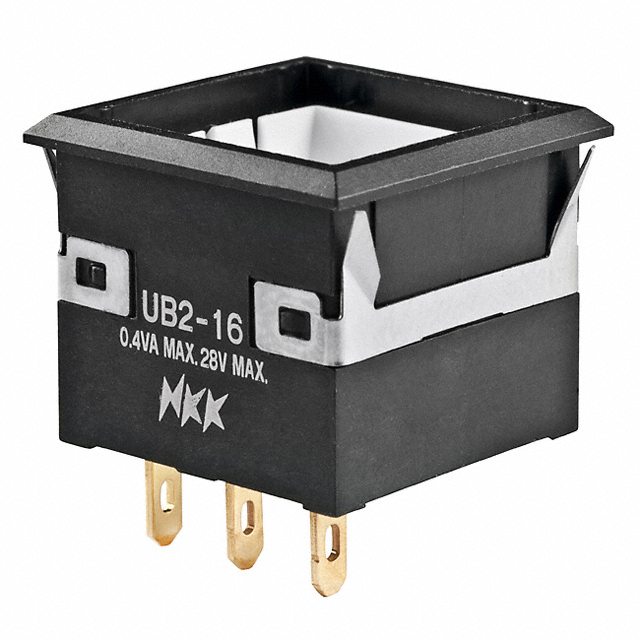

NKK Switches UB216KKG01N	200000 Cycles	200000 Cycles	70 °C	-25 °C	Solder Lug	No Marking	Sealed - Fully	On-On	Plunger for Cap	17.4 mm	17.4 mm	SPDT	28 V	0.4 VA	28 V	Panel Mount Snap-In	Standard
