NRPN232 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 46POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish - Mating	Termination	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Number of Rows [custom]	Connector Type	Contact Shape	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Voltage Rating	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Style	Fastening Type	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [custom]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions NRPN232MAMS-RC	Flash	Gold	Solder	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	UL94 V-0	Surface Mount	2	Header	Square	Brass	-40 C	105 ░C	Male Pin	Black	150 VDC	0.079 "	2 mm	Unshrouded	Gold	2 mm	0.079 in	2 A	Flash	Board to Board Cable	Push-Pull	All	46	0.141 in	3.6 mm
Sullins Connector Solutions NRPN232PAEN-RC	Flash	Gold	Solder	Nylon 6T Polyamide (PA6T)			UL94 V-0	Through Hole	2	Header	Square	Brass	-40 C	105 ░C	Male Pin	Black	150 VDC	0.079 "	2 mm	Unshrouded	Gold	2 mm	0.079 in	2 A	Flash	Board to Board Cable	Push-Pull	All	46	0.141 in	3.6 mm	0.11 in	2.79 mm	0.33 in	8.38 mm	2 mm	0.079 in

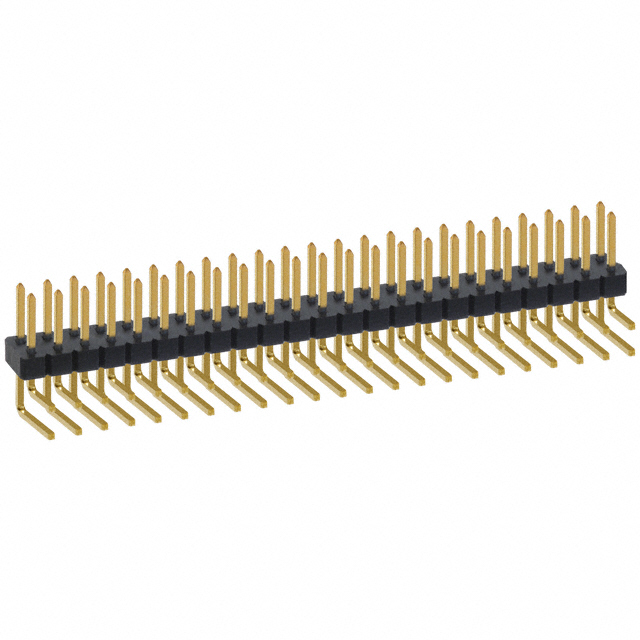

Sullins Connector Solutions NRPN232PARN-RC	Flash	Gold	Solder	Nylon 6T Polyamide (PA6T)			UL94 V-0	Right Angle Through Hole	2	Header	Square	Brass	-40 C	105 ░C	Male Pin	Black	150 VDC	0.079 "	2 mm	Unshrouded	Gold	2 mm	0.079 in	2 A	Flash	Board to Board Cable	Push-Pull	All	46	0.141 in	3.6 mm	0.11 in	2.79 mm			4 mm	0.157 in
