9WPA0812 Series

Catalog

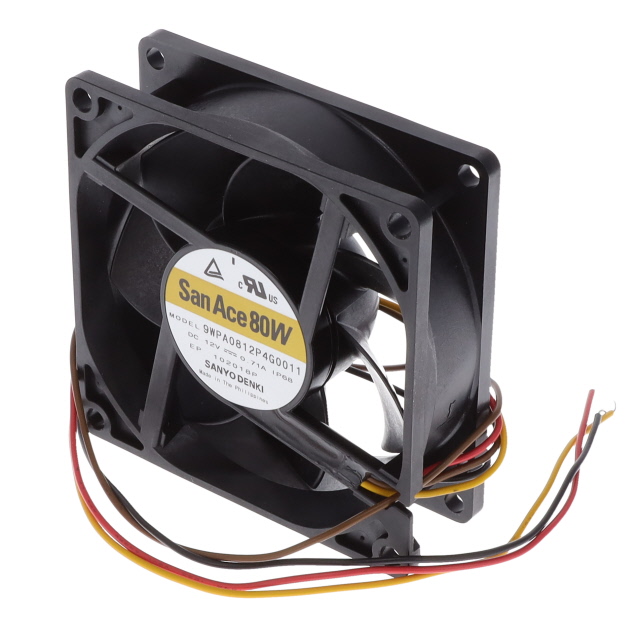

AXIAL FAN, 81.9CFM, 54DBA, 8.52W, 12VDC ROHS COMPLIANT: YES

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Approval Agency	Features	Ingress Protection	RPM	Size / Dimension [z]	Size / Dimension [x]	Noise	Power (Watts)	Fan Type	Width [x]	Air Flow	Air Flow	Bearing Type	Termination
Sanyo Denki America Inc. 9WPA0812P4G001	10.8 VDC	13.2 VDC	Plastic	0.71 A	40000 Hrs	Plastic	209.2 Pa	0.84 in H2O	-20 ░C	70 °C	12 VDC	cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	8250 RPM	80 mm	80 mm	54 dB	8.52 W	Tubeaxial	25.2 mm	2.29 m³/min	81.8 CFM	Ball	4 Wire Leads
Sanyo Denki America Inc. 9WPA0812P4G0011	10.8 VDC	13.2 VDC	Plastic	0.71 A	40000 Hrs	Plastic	209.2 Pa	0.84 in H2O	-20 ░C	70 °C	12 VDC	cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	IP68 - Dust Tight Waterproof	8250 RPM	80 mm	80 mm	54 dB	8.52 W	Tubeaxial	25.2 mm	2.29 m³/min	81.8 CFM	Ball	4 Wire Leads
