PAT-05 Series

Catalog

LCP-LCP MM OM3 2MM AQUADUPLEX 5M

Part	Color - Connectors	Color - Cable	Operating Temperature (Min)	Operating Temperature (Max)	Type	Fiber Core Diameter	Fiber Cladding Diameter	Length - Overall	2nd Connector	Cable Diameter	1st Connector	Insertion Loss	Return Loss	Cable Type	Features	Ratings

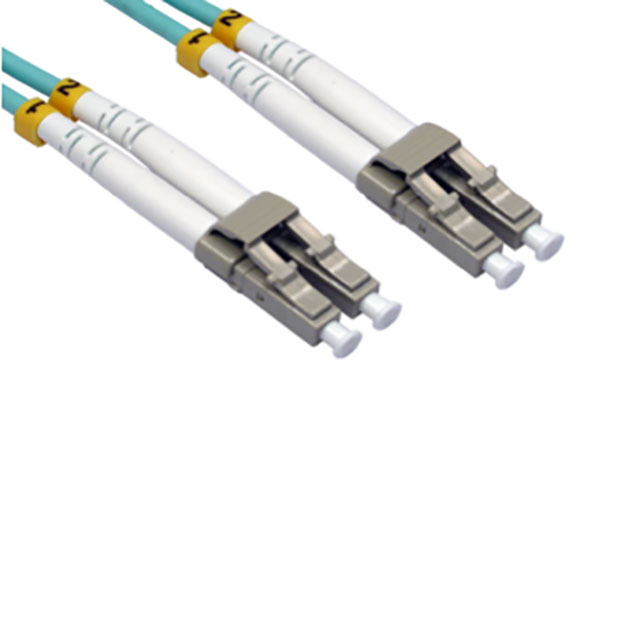

FiberSource, Inc PAT-05-NN-F-20-D-A	Blue	Aqua	-40 °C	85 °C	Duplex Multimode OM3	50 µm	125 µm	16.4 ft	LC/PPC	0.08 "	LC/PPC

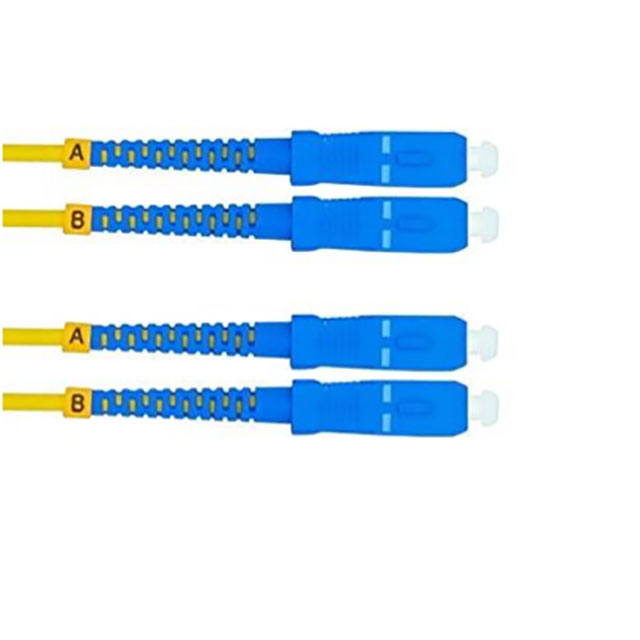

FiberSource, Inc PAT-05-CC-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC/UPC	0.08 "	SC/UPC	0.3 dB	55 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

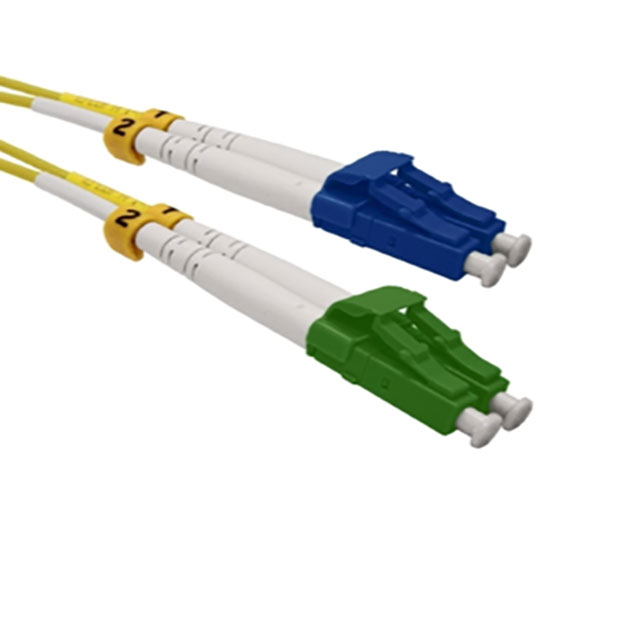

FiberSource, Inc PAT-05-JH-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	LC Duplex	0.08 "	LC Duplex	0.3 dB	65 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

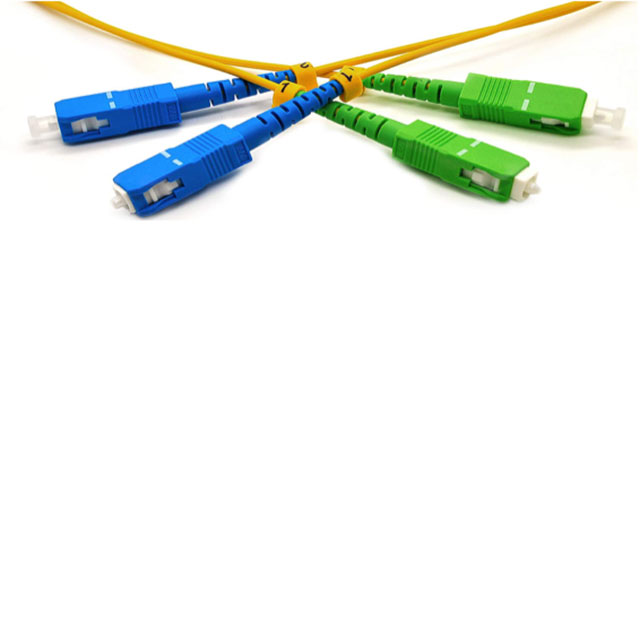

FiberSource, Inc PAT-05-DC-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC Duplex	0.08 "	SC Duplex	0.3 dB	65 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

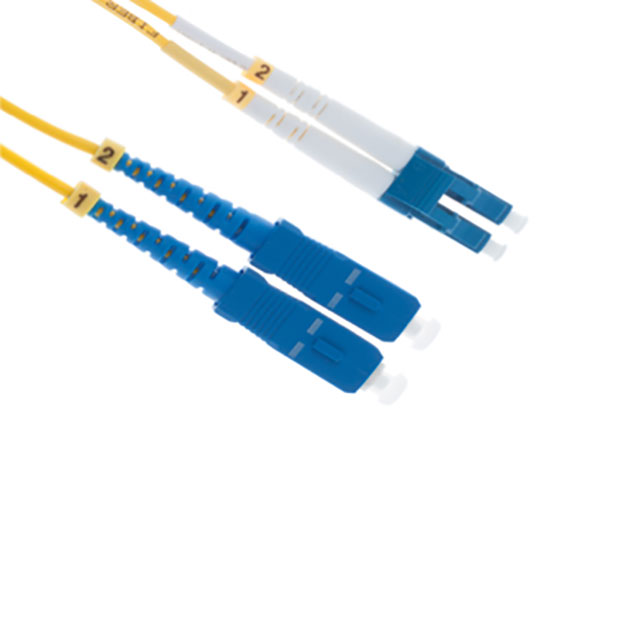

FiberSource, Inc PAT-05-HC-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC Duplex	0.08 "	LC Duplex	0.3 dB	55 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

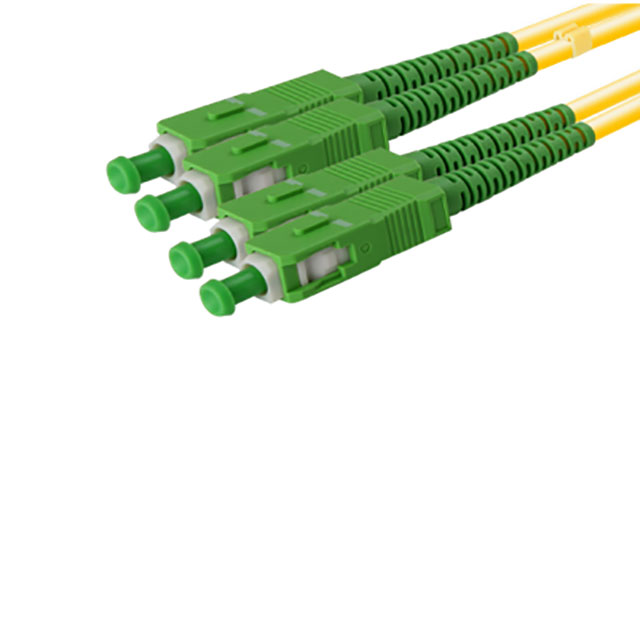

FiberSource, Inc PAT-05-DD-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC Duplex	0.08 "	SC Duplex	0.3 dB	65 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

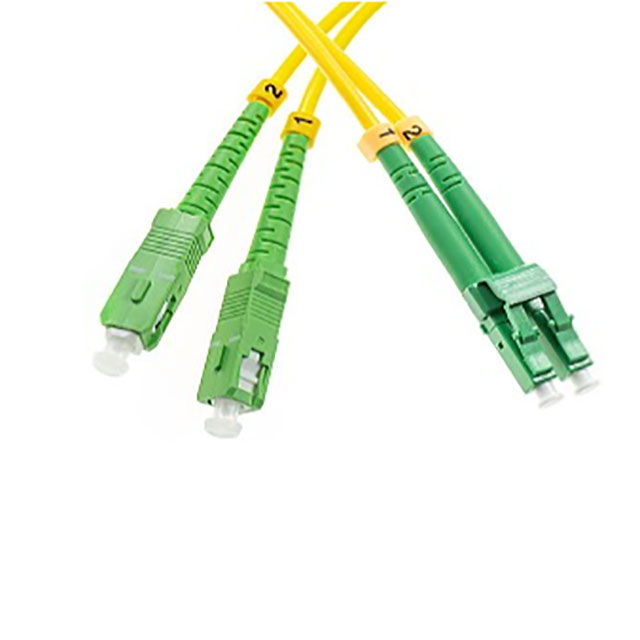

FiberSource, Inc PAT-05-JD-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC Duplex	0.08 "	LC Duplex	0.3 dB	65 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

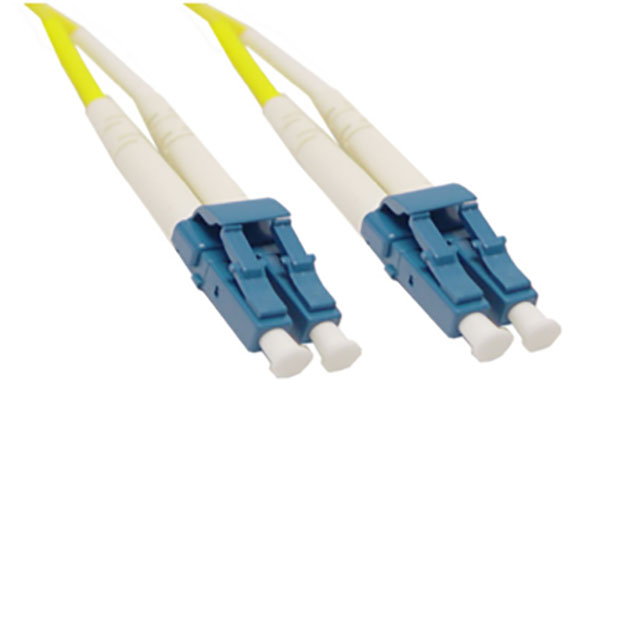

FiberSource, Inc PAT-05-HH-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	LC Duplex	0.08 "	LC Duplex	0.3 dB	55 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

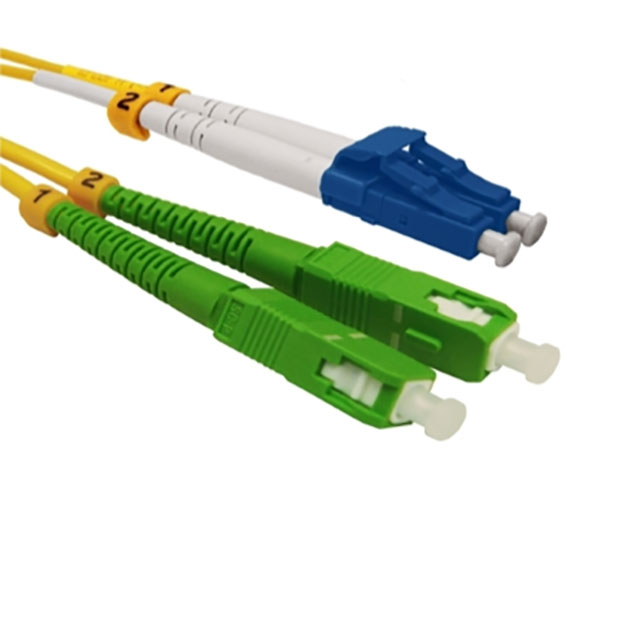

FiberSource, Inc PAT-05-HD-B-20-D-9	Blue	Yellow	-40 °C	85 °C	Duplex Singlemode	9 µm	125 µm	16.4 ft	SC Duplex	0.08 "	LC Duplex	0.3 dB	65 dB	Bend Insensitive Fiber (BIF)	Low Smoke	LSZH

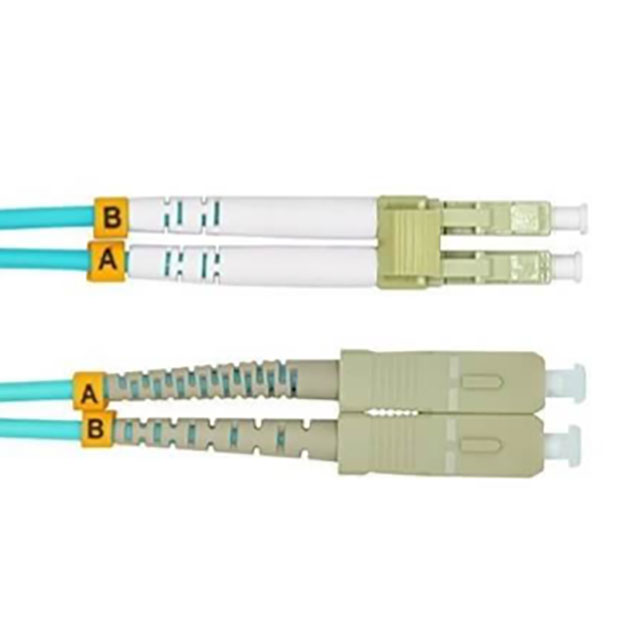

FiberSource, Inc PAT-05-NL-F-20-D-A	Blue	Aqua	-40 °C	85 °C	Duplex Multimode OM3	50 µm	125 µm	16.4 ft	SC Duplex	0.08 "	LC Duplex
