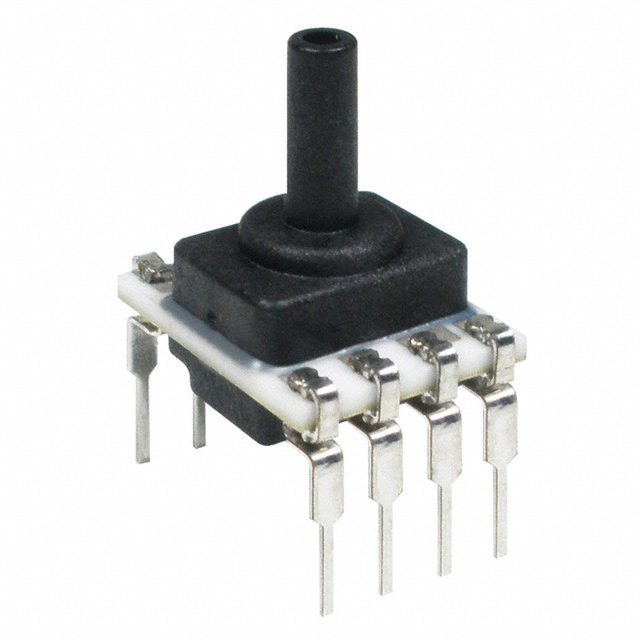

TSC / NSC Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BOARD MOUNT PRESSURE SENSORS DIP, SING AXIAL BARB 100PSI GAGE,1.8-12V

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Pressure Type	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Port Style	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Port Size	Port Size	Accuracy	Package / Case	Package / Case	Termination Style	Output Type	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Operating Pressure	Output	Output
Honeywell Sensing and Productivity Solutions NSCDANN100PGUNV	Board Mount	85 °C	-40 C	689.48 kPa	100 PSI	Vented Gauge	250 PSI	1723.69 kPa	0 mV	86 mV	Barbed	Through Hole	8-DIP	12 V	1.5 V	Male Tube	0.19 in	4.93 mm	0.25 %	8-DIP Top Port	0.524 in 13.3 mm	PC Pin	Wheatstone Bridge
Honeywell Sensing and Productivity Solutions TSCDRRN060MGUCV	Board Mount	85 °C	-40 C	6 kPa	0.87 PSI	Vented Gauge			0 mV	6.5 mV	Barbed	Through Hole	8-DIP	12 V	1.5 V	Dual Male Tube	0.08 "	1.93 mm	0.2 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	PC Pin	Wheatstone Bridge	Temperature Compensated	12.65 PSI	87.2 kPa
Honeywell Sensing and Productivity Solutions NSCDRRN030PGUNV	Board Mount	85 °C	-40 C	206.84 kPa	30 PSI	Vented Gauge			0 mV	103.5 mV	Barbed	Through Hole	8-DIP	12 V	1.5 V	Dual Male Tube	0.08 "	1.93 mm	0.25 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	PC Pin	Wheatstone Bridge		60 PSI	413.69 kPa	5 V
Honeywell Sensing and Productivity Solutions NSCDANN030PAUNV	Board Mount	85 °C	-40 C	206.84 kPa	30 PSI				0 mV	74 mV	Barbed	Through Hole	8-DIP	12 V	1.5 V	Male Tube	0.19 in	4.93 mm	0.25 %	8-DIP Top Port	0.524 in 13.3 mm	PC Pin	Wheatstone Bridge		60 PSI	413.69 kPa
Honeywell Sensing and Productivity Solutions NSCSMNN001PDUNV	Board Mount	85 °C	-40 C			Differential	10 PSI	68.95 kPa	0 mV	65 mV	No Port	Through Hole	4-SIP	12 V	1.5 V				0.25 %	4-SIP Module		PC Pin	Wheatstone Bridge				5 V	±1PSI (±6.89kPa)
Honeywell Sensing and Productivity Solutions TSCSMNN2.5BGUCV	Board Mount	85 °C	-40 C	250 kPa	36.26 PSI	Vented Gauge			0 mV	31.75 mV	No Port	Through Hole	4-SIP	12 V	1.5 V				0.15 %	4-SIP Module		PC Pin	Wheatstone Bridge	Temperature Compensated					5 V
Honeywell Sensing and Productivity Solutions TSCSANN015PGUCV	Board Mount	85 °C	-40 C	103.42 kPa	15 PSI	Vented Gauge			0 mV	26.25 mV	Barbed	Through Hole	4-SIP	12 V	1.5 V	Male Tube	0.19 in	4.93 mm	0.15 %	4-SIP Side Port		PC Pin	Wheatstone Bridge	Temperature Compensated	60 PSI	413.69 kPa
Honeywell Sensing and Productivity Solutions NSCSNBN250KDUNV	Board Mount	85 °C	-40 C	250 kPa	36.26 PSI	Differential	59.47 PSI	410 kPa			Barbless	Through Hole	4-SIP	12 V	1.5 V	Dual Male Tube	0.19 in	4.8 mm	0.25 %	4-SIP Dual Ports Same Side		PC Pin	Wheatstone Bridge
Honeywell Sensing and Productivity Solutions NSCSSNN015PDUNV	Board Mount	85 °C	-40 C	103.42 kPa	15 PSI	Differential	30 PSI	206.84 kPa	0 mV	155 mV	No Port	Through Hole	4-SIP	12 V	1.5 V				0.25 %	4-SIP Module		PC Pin	Wheatstone Bridge							5V
Honeywell Sensing and Productivity Solutions TSCSAAN100PDUCV	Board Mount	85 °C	-40 C	689.48 kPa	100 PSI	Differential	245 PSI	1689.22 kPa	0 mV	60 mV	Barbed	Through Hole	4-SIP	12 V	1.5 V	Dual Male Tube	0.19 in	4.93 mm	0.15 %	4-SIP Dual Ports Opposite Sides		PC Pin	Wheatstone Bridge	Temperature Compensated
