WS1085 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Termination Style	Mechanical Life	Operating Force	Current Rating (Amps)	Actuator Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Circuit	Electrical Life	Mounting Type	Voltage Rating - AC

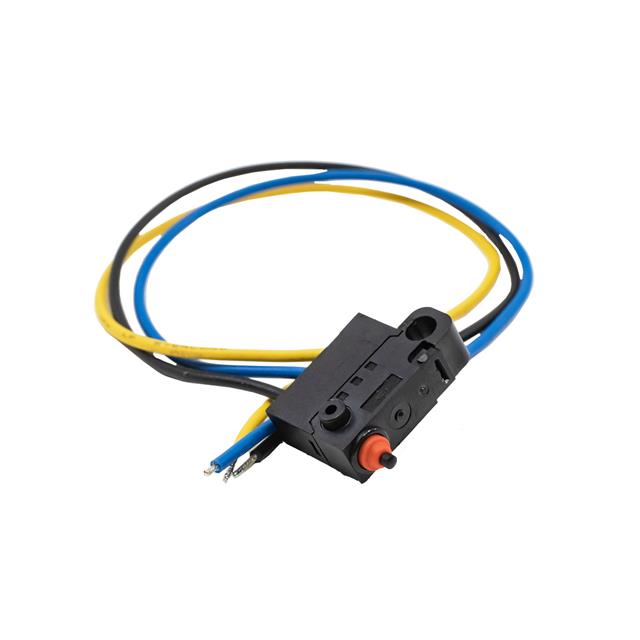

E-Switch WS10850100F130WA	Wire Leads	500000 Cycles	130 gf	100 mA	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	85 °C	-40 C	48 V	On-On	SPDT	100000 Cycles	Panel Mount	125 V

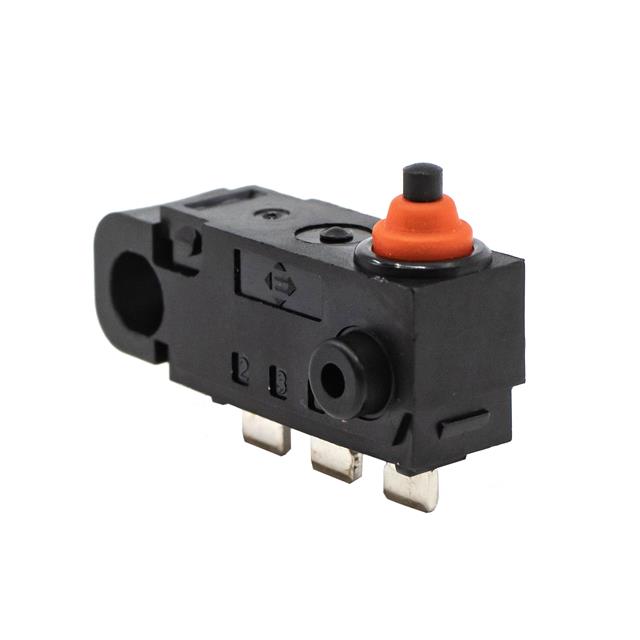

E-Switch WS10850100F130SA	Solder Lug	500000 Cycles	130 gf	100 mA	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	85 °C	-40 C	48 V	On-On	SPDT	100000 Cycles	Panel Mount	125 V

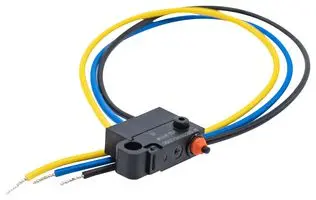

E-Switch WS1085300F130WA	Wire Leads	500000 Cycles	130 gf	3 A	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	85 °C	-40 C	12 V	On-On	SPDT	100000 Cycles	Panel Mount	125 V
E-Switch WS1085300F130SA	Solder Lug	500000 Cycles	130 gf	3 A	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	85 °C	-40 C	12 V	On-On	SPDT	100000 Cycles	Panel Mount	125 V
