046622 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD R/A 4POS 3MM

Part	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Material Flammability Rating	Fastening Type	Shrouding	Contact Material	Applications	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Mounting Type	Contact Finish - Post	Contact Shape	Features	Insulation Height [custom]	Insulation Height [custom]	Termination
Molex 0466220401	Male Pin	2.54 µm	100 µin	Header	All	15 µin	0.38 µm	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1	4	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

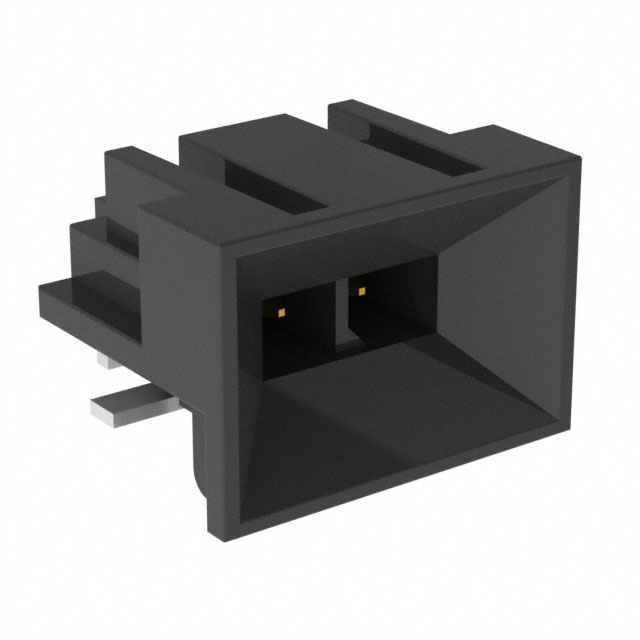

Molex 0466220202	Male Pin	2.54 µm	100 µin	Header	All	30 Áin	0.76 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1	2	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

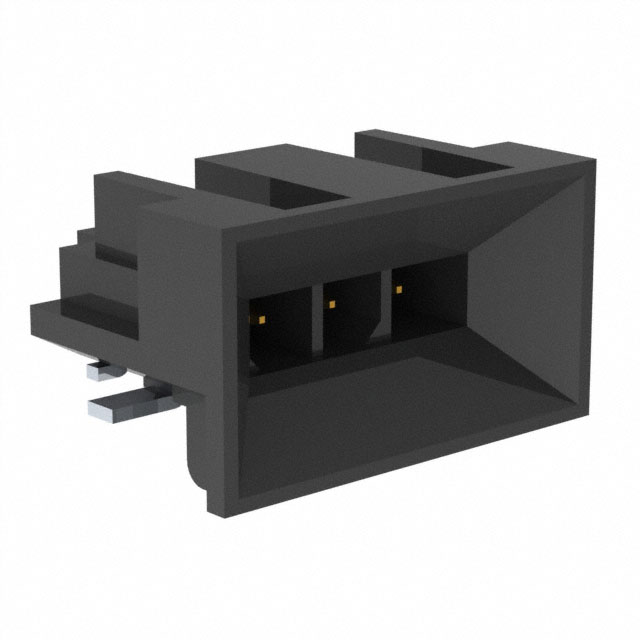

Molex 0466220301	Male Pin	2.54 µm	100 µin	Header	All	15 µin	0.38 µm	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1		Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder
Molex 0466220300	Male Pin	1.52 µm	60 µin	Header	All	60 Áin	1.52 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm		Black	-40 °C	105 ░C	1		Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder
Molex 0466220602	Male Pin	2.54 µm	100 µin	Header	All	30 Áin	0.76 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1	6	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

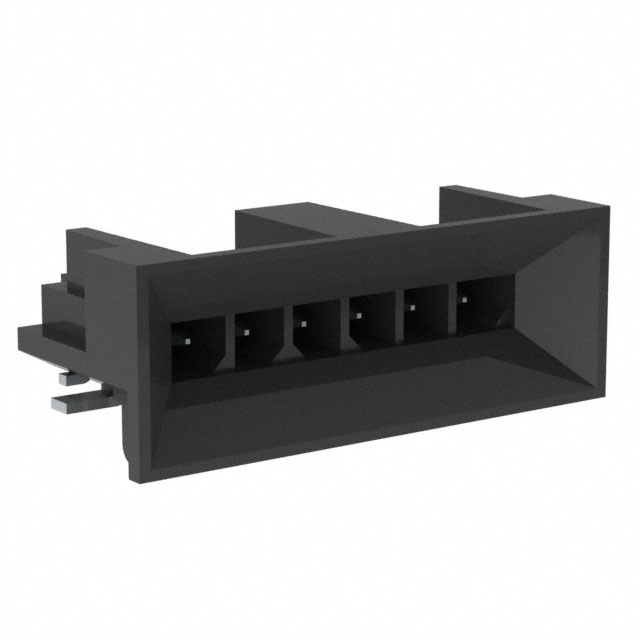

Molex 0466220600	Male Pin	1.52 µm	60 µin	Header	All	60 Áin	1.52 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm		Black	-40 °C	105 ░C	1	6	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

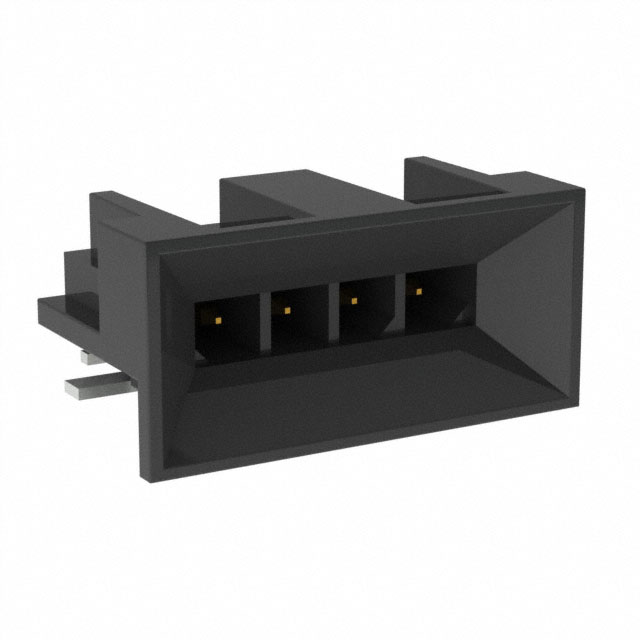

Molex 0466220402	Male Pin	2.54 µm	100 µin	Header	All	30 Áin	0.76 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1	4	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

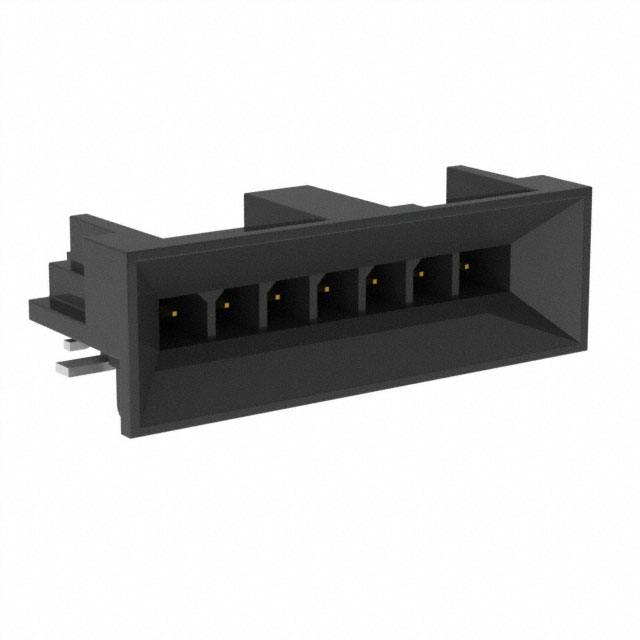

Molex 0466220702	Male Pin	2.54 µm	100 µin	Header	All	30 Áin	0.76 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1	7	Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

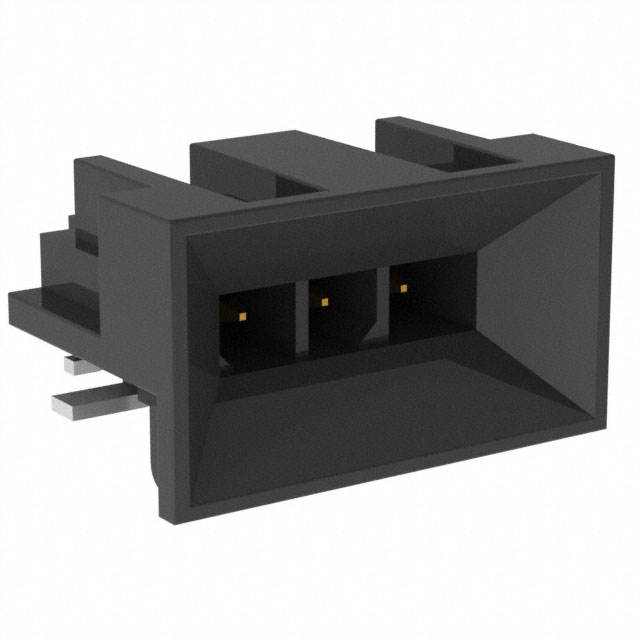

Molex 0466220302	Male Pin	2.54 µm	100 µin	Header	All	30 Áin	0.76 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm	Gold	Black	-40 °C	105 ░C	1		Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder

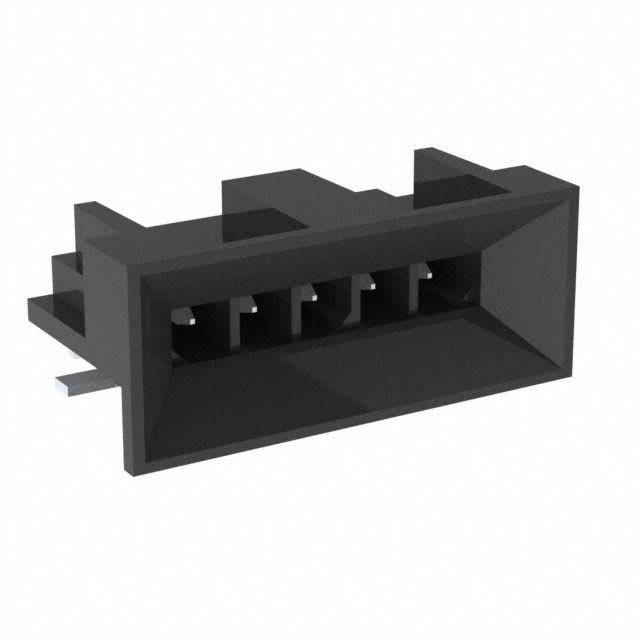

Molex 0466220500	Male Pin	1.52 µm	60 µin	Header	All	60 Áin	1.52 Ám	Board to Cable/Wire	UL94 V-0	Push-Pull	Shrouded - 4 Wall	Brass Alloy	Automotive General Purpose Medical Telecommunications	0.118 in	3 mm		Black	-40 °C	105 ░C	1		Surface Mount Right Angle	Tin	Square	Blind Mating Board Guide	0.35 in	8.89 mm	Solder
