T 3447 Series

Catalog

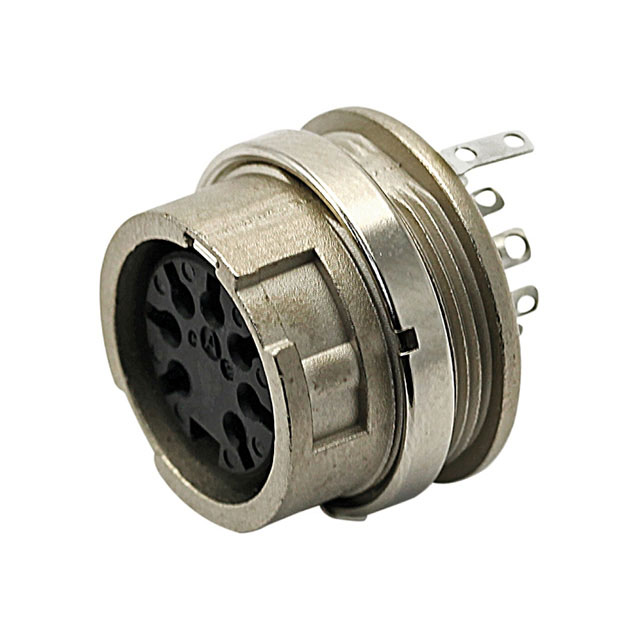

CONN RCPT HSNG FMALE 7POS PNL MT

Part	Fastening Type	Housing Color	Insert Material	Material Flammability Rating	Contact Type	Shell Finish	Contact Shape	Contact Size	Shielding	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Mounting Type	Note	Ingress Protection	Mounting Feature	Type	Number of Positions	Connector Type	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Voltage Rating	Color	Termination
Amphenol Tuchel Industrial T 3447 150	Bayonet Lock	Silver	Thermoplastic	UL94 V-0	Crimp	Nickel	Circular	1.5 mm	Unshielded	Die Cast	-40 C	100 °C	M16-7B	Keyed	Panel Mount	Contacts Not Included	IP40	Bulkhead - Front Side Nut	For Female Sockets	7	Receptacle Housing
Amphenol Tuchel Industrial T 3447 500	Bayonet Lock									Plastic	-40 C	100 °C	M16-7B	Keyed	Panel Mount Snap-In		IP40			7	Receptacle Female Sockets	Silver	Plastic	7 A	250 V
Amphenol Tuchel Industrial T 3447 900	Bayonet Lock					Nickel				Die Cast	-40 C	100 °C	M16-7B	Keyed	Right Angle Through Hole		IP40			7	Receptacle Female Sockets	Silver	Metal	7 A	250 V	Silver	Solder
