MDF Series
Manufacturer: TDK Corporation
Beta
⌘K

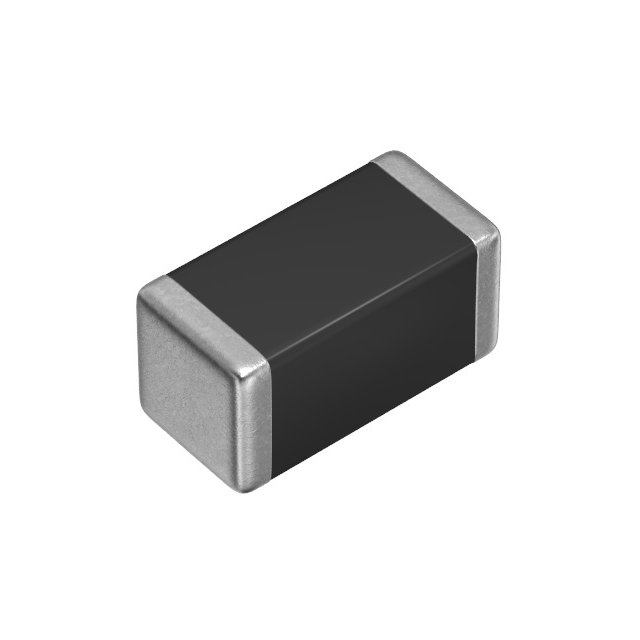

COMMON MODE CHOKES / FILTERS 0402 690MOHM 100MHZ 550MA AEC-Q200
| Part | Number of Lines | Current Rating (Max) [Max] | Mounting Type | Filter Type | Package / Case | DC Resistance (DCR) (Max) [Max] | Impedance @ Frequency | Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1 | 550 mA | Surface Mount | Power Line | 0402 (1005 Metric) | 690 mOhm | 1 kOhms | Automotive | 0.02 in | 0.5 mm | 0.039 " | 1 mm | AEC-Q200 | -55 C | 125 °C | 0.55 mm | 0.022 in |
