MN4 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

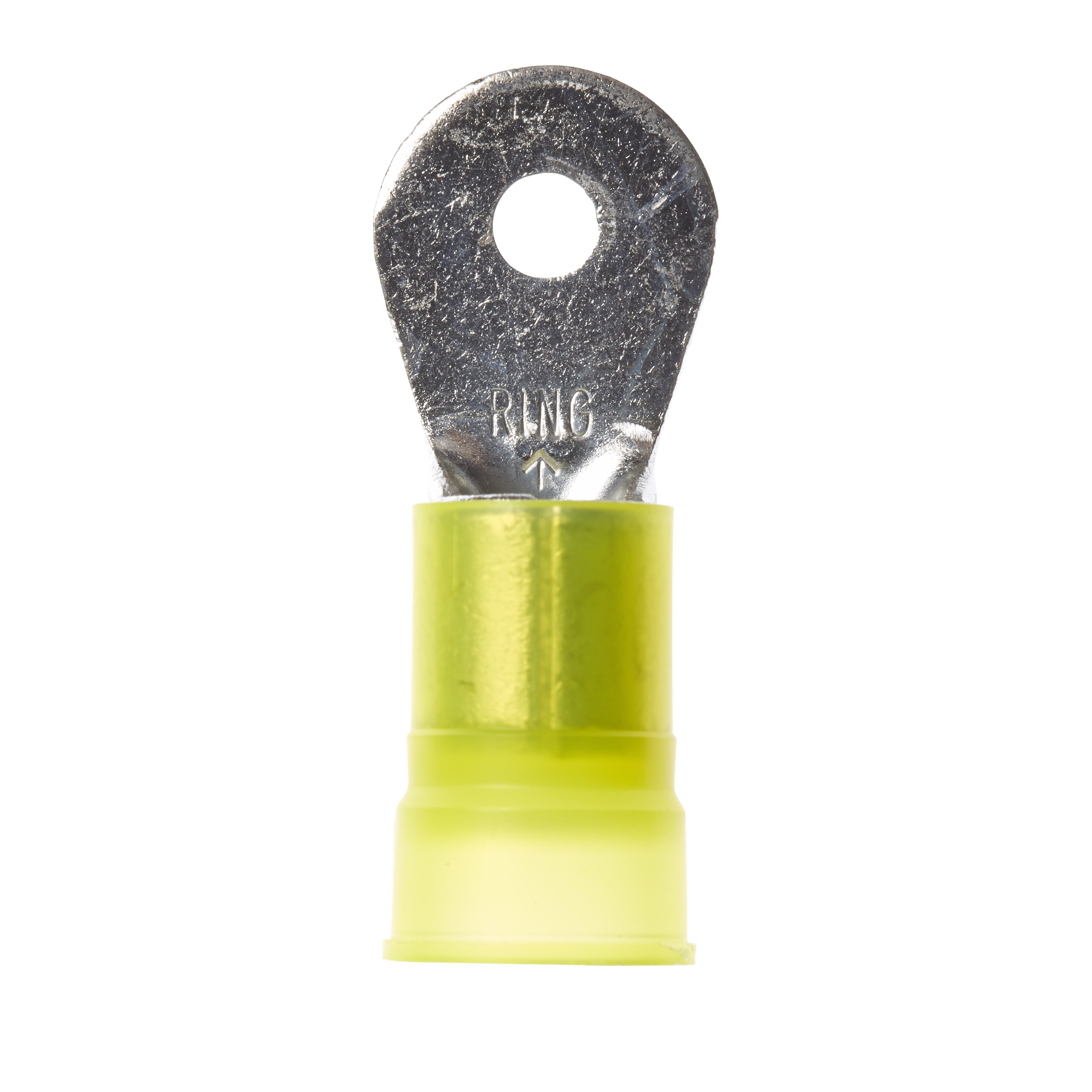

CONN RING CIRC 4AWG #10 CRIMP
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Material - Insulation | Contact Material | Termination | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges | Mounting Type | Thickness | Thickness | Contact Finish | Color | Insulation | Features | Wire Gauge | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 13.08 mm | 0.515 in | Nylon Polyamide (PA) | Copper ETP | Crimp | Circular | 0.68 " | 17.27 mm | Free Hanging (In-Line) | 0.075 in | 1.91 mm | Tin | Yellow | Insulated | Brazed Seam | 4 AWG | 10 Stud | 1.74 in | 44.2 mm |
