TY Series

Catalog

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS AUDIO XFMR FCC68 XFMR 600:600 100MADC

Part	Transformer Type	Power Level [Max]	Power Level [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Height - Seated (Max) [z]	Height - Seated (Max) [z]	DC Resistance (DCR) - Secondary	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Return Loss	Impedance - Secondary (Ohms)	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	DC Resistance (DCR) - Primary	Voltage - Isolation	Frequency Response	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Insertion Loss	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Turns Ratio - Primary:Secondary	DC Resistance (DCR) - Primary [custom]	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)

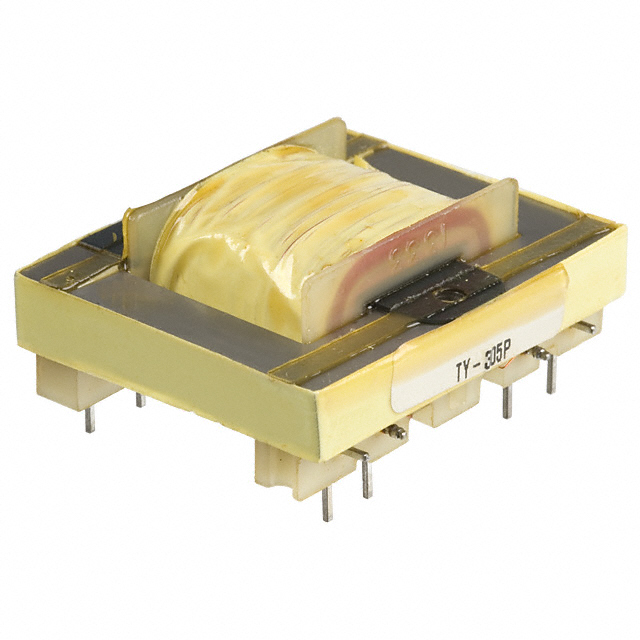

Triad Magnetics TY-305P	Data/Voice Coupling	7 dB	-45 dB	85 °C	-20 ░C	PC Pin	0.68 in	17.27 mm	61 Ohm	1	0.9	10 dB	600 Ohms	300 Hz	3.5 kHz	Through Hole	108 Ohm	1500 VAC	0.5 dB	41.91 mm	34.93 mm	1.65 in	1.375 in	1.5 dB
Triad Magnetics TY-402P	Data/Voice Coupling	7 dB	-45 dB	85 °C	-20 ░C	PC Pin			112 Ohm			13 dB	600 Ohms	300 Hz	3.5 kHz	Through Hole		1500 VAC	0.5 dB	0.815 in 20.7 mm	31.75 mm			1.75 dB	0.53 in	13.46 mm	1 1.1	80 Ohm

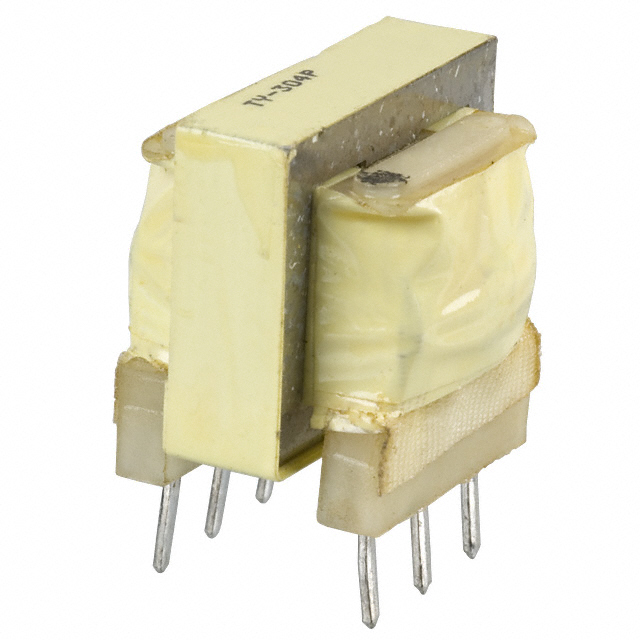

Triad Magnetics TY-304P	Data/Voice Coupling	7 dB	-45 dB	85 °C	-20 ░C	PC Pin			60 Ohm	1	1.05	26 dB		300 Hz	3.5 kHz	Through Hole	42 Ohm	1500 VAC	0.5 dB	20.07 mm	20.62 mm	0.79 "	0.812 in	1 dB					600CT	600CT
