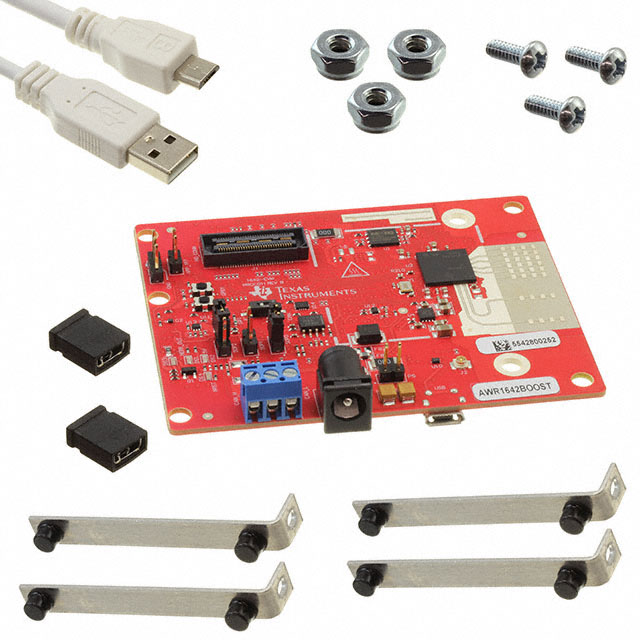

AWR1642 Series
Single-chip 76-GHz to 81-GHz automotive radar sensor integrating DSP and MCU
Manufacturer: Texas Instruments
Catalog
Single-chip 76-GHz to 81-GHz automotive radar sensor integrating DSP and MCU
Key Features
• FMCW transceiverIntegrated PLL, transmitter, receiver, Baseband, and ADC76 to 81GHz coverage with 4GHz available bandwidthFour receive channelsTwo transmit channelsUltra-accurate chirp (timing) engine based on fractional-N PLLTX power: 12dBmRX noise figure:14dB (76 to 77GHz)15dB (77 to 81GHz)Phase noise at 1MHz:–95dBc/Hz (76 to 77GHz)–93dBc/Hz (77 to 81GHz)Built-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip memory: 1.5MBCortex-R4F microcontroller for object tracking and classification, AUTOSAR, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Integrated peripheralsInternal memories with ECCHost interfaceCAN and CAN-FDOther interfaces available to user applicationUp to 6 ADC channelsUp to 2 SPI channelsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationDevice Security (on select part numbers)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), Asymmetric keys (up to RSA-2K) with Key revocation capabilityCrypto software accelerators - PKA , AES (up to 256 bit), SHA (up to 256 bit), TRNG/DRGBFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid ISO 26262 functional safety system design up to ASIL-DHardware integrity up to ASIL-BSafety-related certificationISO 26262 certified upto ASIL B by TUV SUDAEC-Q100 qualifiedDevice advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3 V/1.8 VClock sourceSupports External Oscillator at 40MHzSupports externally driven clock (square/sine) at 40MHzSupports 40MHz crystal connection with load capacitorsEasy hardware design0.65mm pitch, 161-pin 10.4mm × 10.4 mmflip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction temp range: –40°C to 125°CFMCW transceiverIntegrated PLL, transmitter, receiver, Baseband, and ADC76 to 81GHz coverage with 4GHz available bandwidthFour receive channelsTwo transmit channelsUltra-accurate chirp (timing) engine based on fractional-N PLLTX power: 12dBmRX noise figure:14dB (76 to 77GHz)15dB (77 to 81GHz)Phase noise at 1MHz:–95dBc/Hz (76 to 77GHz)–93dBc/Hz (77 to 81GHz)Built-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip memory: 1.5MBCortex-R4F microcontroller for object tracking and classification, AUTOSAR, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Integrated peripheralsInternal memories with ECCHost interfaceCAN and CAN-FDOther interfaces available to user applicationUp to 6 ADC channelsUp to 2 SPI channelsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationDevice Security (on select part numbers)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), Asymmetric keys (up to RSA-2K) with Key revocation capabilityCrypto software accelerators - PKA , AES (up to 256 bit), SHA (up to 256 bit), TRNG/DRGBFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid ISO 26262 functional safety system design up to ASIL-DHardware integrity up to ASIL-BSafety-related certificationISO 26262 certified upto ASIL B by TUV SUDAEC-Q100 qualifiedDevice advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3 V/1.8 VClock sourceSupports External Oscillator at 40MHzSupports externally driven clock (square/sine) at 40MHzSupports 40MHz crystal connection with load capacitorsEasy hardware design0.65mm pitch, 161-pin 10.4mm × 10.4 mmflip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction temp range: –40°C to 125°C
Description
AI
The AWR1642 device is an integrated single-chip FMCW radar sensor capable of operation in the 76 to 81GHz band. The device is built with TI’s low-power 45nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The AWR1642 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
The AWR1642 device is a self-contained FMCW radar sensor single-chip solution that simplifies the implementation of Automotive Radar sensors in the band of 76 to 81GHz. It is built on TI’s low-power 45nm RFCMOS process, which enables a monolithic implementation of a 2TX, 4RX system with built-in PLL and ADC converters. It integrates the DSP subsystem, which contains TI’s high-performance C674x DSP for the Radar Signal processing. The device includes an ARM R4F-based processor subsystem, which is responsible for radio configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation (Short, Mid, Long) with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including TI reference designs, software drivers, sample configurations, API guides, and user documentation.
The AWR1642 device is an integrated single-chip FMCW radar sensor capable of operation in the 76 to 81GHz band. The device is built with TI’s low-power 45nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The AWR1642 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
The AWR1642 device is a self-contained FMCW radar sensor single-chip solution that simplifies the implementation of Automotive Radar sensors in the band of 76 to 81GHz. It is built on TI’s low-power 45nm RFCMOS process, which enables a monolithic implementation of a 2TX, 4RX system with built-in PLL and ADC converters. It integrates the DSP subsystem, which contains TI’s high-performance C674x DSP for the Radar Signal processing. The device includes an ARM R4F-based processor subsystem, which is responsible for radio configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation (Short, Mid, Long) with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including TI reference designs, software drivers, sample configurations, API guides, and user documentation.
