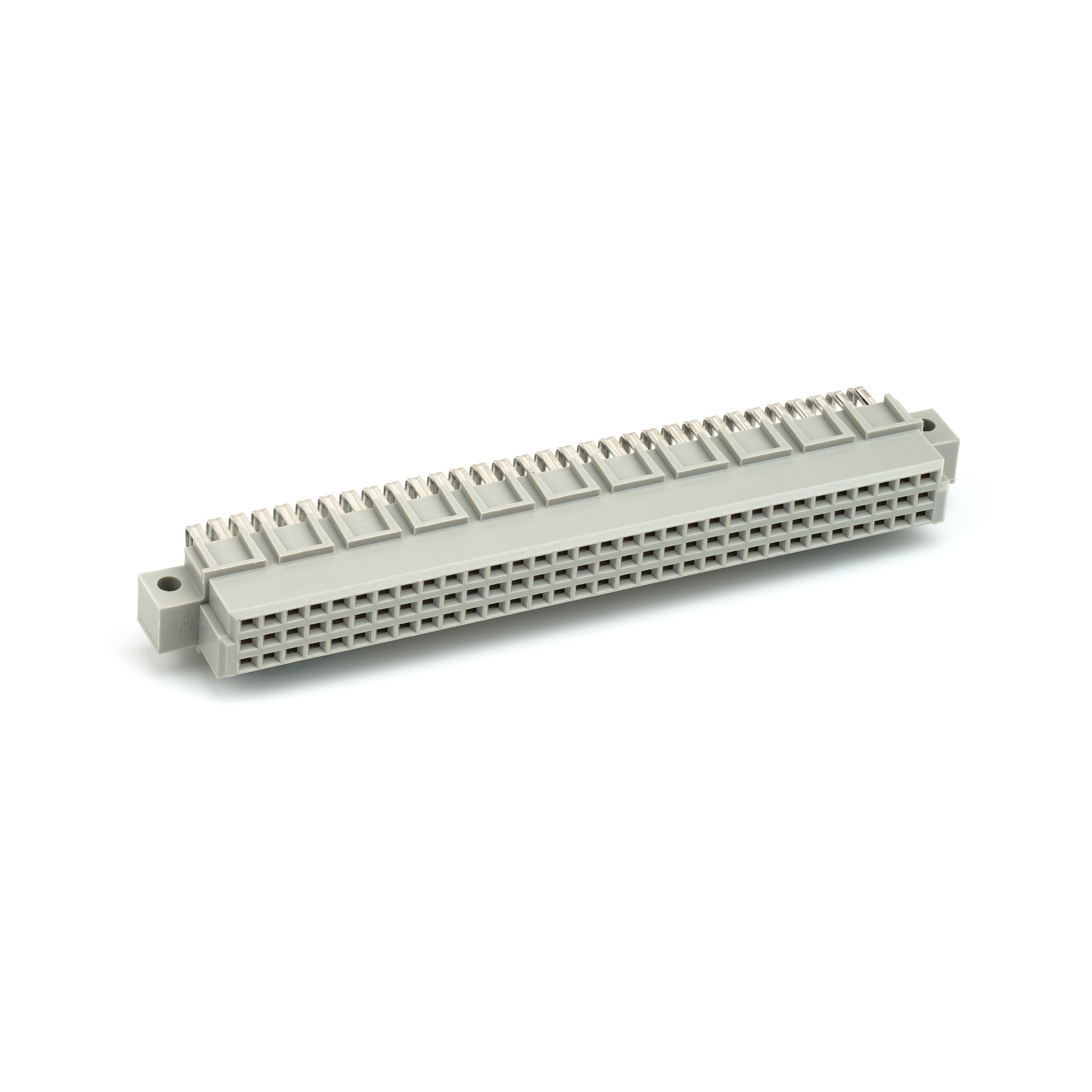

DIN-096R Series
Manufacturer: 3M Electronic Specialty
Catalog
CONN DIN PLUG 96POS
| Part | Current Rating (Amps) | Material - Insulation | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Style | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions Loaded | Number of Positions | Contact Finish | Mounting Type | Termination | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 3 µin | 0.076 Ám | Plug Male Pins | All | 96 | Gold | Through Hole | Solder | 0.1 " | 2.54 mm | |
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 10 Áin | 0.25 Ám | Plug Male Pins | All | 96 | Gold | Through Hole | Solder | 0.1 " | 2.54 mm | |
3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 3 µin | 0.076 Ám | Plug Male Pins | All | 96 | Gold | Through Hole | Solder | 0.1 " | 2.54 mm | |
3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 30 Áin | 0.76 Ám | Receptacle Female Sockets | All | 96 | Gold | Right Angle Through Hole | Solder | 0.1 " | 2.54 mm | Board Lock |
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 10 Áin | 0.25 Ám | Receptacle Female Sockets | All | 96 | Gold | Right Angle Through Hole | Solder | 0.1 " | 2.54 mm | |
3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 1 µin | 0.025 µm | Receptacle Female Sockets | All | 96 | Gold | Right Angle Through Hole | Solder | 0.1 " | 2.54 mm | |
3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 1 µin | 0.025 µm | Plug Male Pins | All | 96 | Gold | Through Hole | Solder | 0.1 " | 2.54 mm | |
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 3 µin | 0.076 Ám | Receptacle Female Sockets | All | 96 | Gold | Right Angle Through Hole | Solder | 0.1 " | 2.54 mm | Board Lock |
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 30 Áin | 0.76 Ám | Plug Male Pins | All | 96 | Gold | Through Hole | Press-Fit | 0.1 " | 2.54 mm | |
 3M Electronic Specialty | 3 A | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | -55 C | 125 °C | 3 | R | 3 µin | 0.076 Ám | Plug Male Pins | All | 96 | Gold | Through Hole | Press-Fit | 0.1 " | 2.54 mm |
