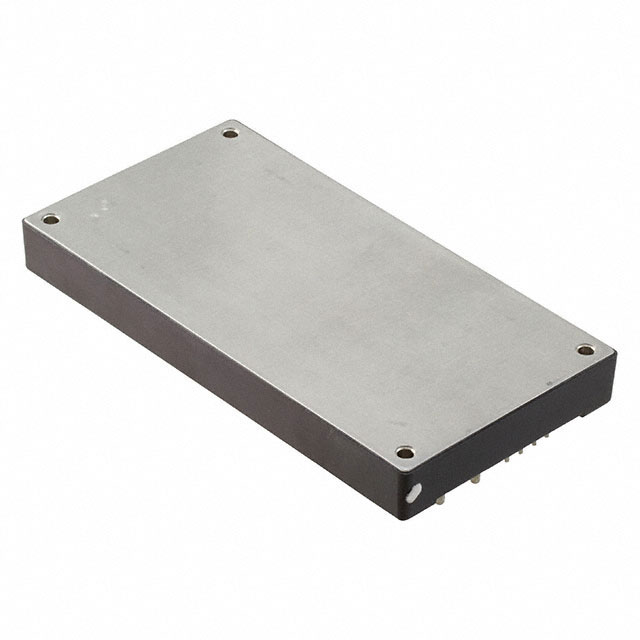

PFE500 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 504 W, 28 V, 18 A

Part	Weight	Weight	Load Regulation	Line Regulation	Efficiency	Applications	Power (Watts)	Approval Agency	Package / Case	Type	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]
TDK Corporation PFE500SA-28/T	0.441 lb	200.03 g	56 mV	56 mV	89 %	ITE (Commercial)	504 W	CE CSA UL	11-DIP Module Full Brick	Enclosed	60950-1 62368-1	265 VAC	85 VAC	28 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	18 A	Through Hole	1	-40 °C	100 °C
TDK Corporation PFE500F-48/T			96 mV	96 mV	86 %	ITE (Commercial)	500 W	CE cULus	17-DIP Module Full Brick	Enclosed	60950-1 62368-1	265 VAC	85 VAC	48 V	2.76 "	4.8 in	12.7 mm	0.5 in	70 mm	122 mm	10.5 A	Through Hole	1	-40 °C	100 °C	0.662 lb	300.28 g
TDK Corporation PFE500SA-12/T	0.441 lb	200.03 g	48 mV	48 mV	86 %	ITE (Commercial)	396 W	CE CSA UL	11-DIP Module Full Brick	Enclosed	60950-1 62368-1	265 VAC	85 VAC	12 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	33 A	Through Hole	1	-40 °C	100 °C
TDK Corporation PFE500SA-48	0.441 lb	200.03 g	96 mV	96 mV	91 %	ITE (Commercial)	504 W	CE CSA UL	11-DIP Module Full Brick	Enclosed	60950-1 62368-1	265 VAC	85 VAC	48 V	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	10.5 A	Through Hole	1	-40 °C	100 °C
