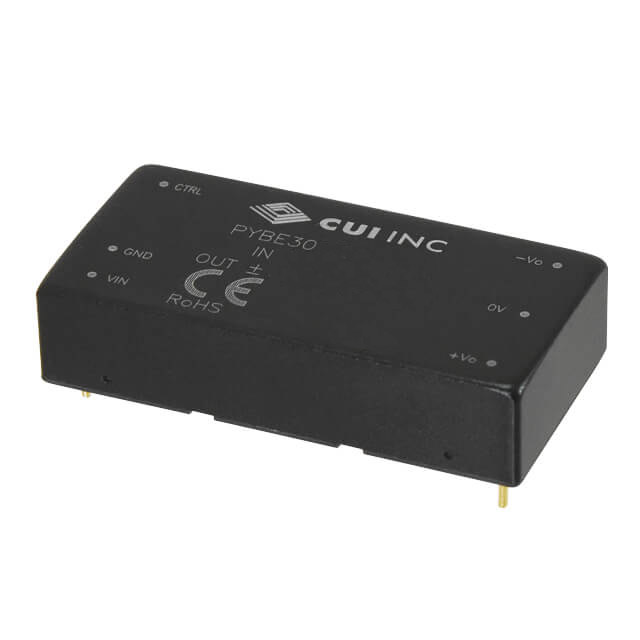

PYBE30 Series

Manufacturer: CUI Inc.

Catalog

DC/DC CONVERTER 15V 30W

Part	Standard Number	Applications	Efficiency	Voltage - Isolation	Current - Output (Max) [Max]	Approval Agency	Number of Outputs	Mounting Type	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Input Type	Features	Current - Output (Max)	DC Voltage - Input (Min) [Min]	Voltage - Output 2	DC Voltage - Input (Max) [Max]	Package / Case

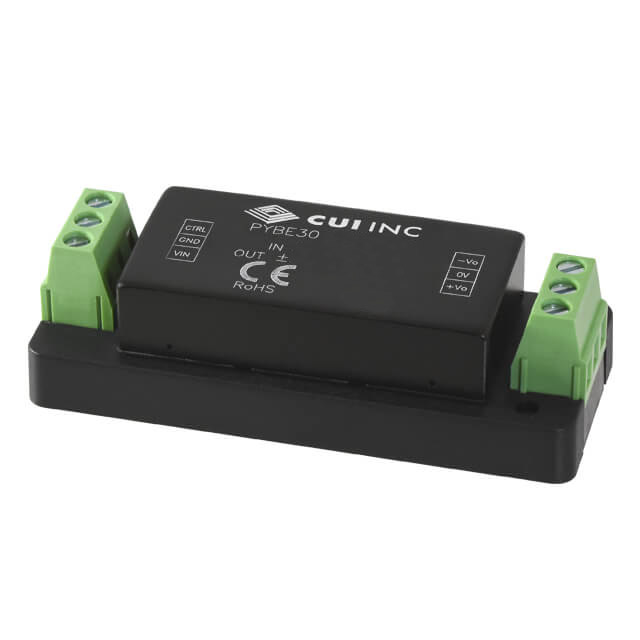

CUI Inc. PYBE30-Q48-S15-T	55024 55032 Class A 60950-1	ITE (Commercial)	89 %	1.5 kV	2 A	CB Scheme EN IEC UL	1	Chassis Mount	75 V	30 Watts	80 ¯C	-40 °C	18 V	Enclosed	76 mm	1.24 in	2.99 in	31.5 mm	0.83 "	21.2 mm	15 V
CUI Inc. PYBE30-Q24-S3-T	55024 55032 Class A 60950-1	ITE (Commercial)	85 %	1.5 kV	6 A	CB Scheme EN IEC UL	1	Chassis Mount	36 V	20 W	80 ¯C	-40 °C	9 V	Enclosed	76 mm	1.24 in	2.99 in	31.5 mm	0.83 "	21.2 mm	3.3 V

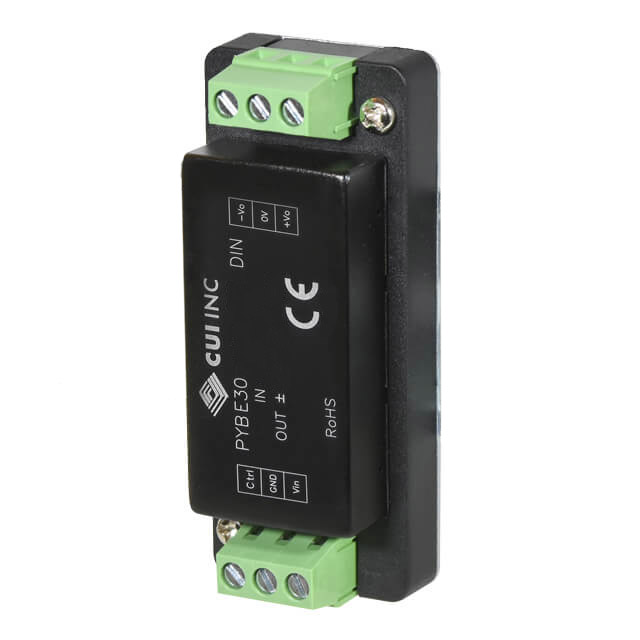

CUI Inc. PYBE30-Q24-D5-DIN		ITE (Commercial)	86 %	1.5 kV		CE cURus	2			30 Watts	80 ¯C	-40 °C			76 mm	1.24 in	2.99 in	31.5 mm	0.87 in	22.2 mm	5 V	DC	Adjustable Output Remote On/Off	3 A	9 V	-5 V	36 V
CUI Inc. PYBE30-Q24-S5	55024 55032 Class A 60950-1	ITE (Commercial)	86 %	1.5 kV	6 A	CB Scheme EN IEC UL	1	Through Hole	36 V	30 Watts	80 ¯C	-40 °C	9 V	Isolated Module	50.8 mm	1 "	2 in	25.4 mm	0.46 in	11.8 mm	5 V		OCP OVP Remote On/Off SCP					6-DIP Module
CUI Inc. PYBE30-Q48-S5	55024 55032 Class A 60950-1	ITE (Commercial)	87 %	1.5 kV	6 A	CB Scheme EN IEC UL	1	Through Hole	75 V	30 Watts	80 ¯C	-40 °C	18 V	Isolated Module	50.8 mm	1 "	2 in	25.4 mm	0.46 in	11.8 mm	5 V		OCP OVP Remote On/Off SCP					6-DIP Module
CUI Inc. PYBE30-Q48-S3-DIN	55024 55032 Class A 60950-1	ITE (Commercial)	86 %	1.5 kV	6 A	CB Scheme EN IEC UL	1			20 W	80 ¯C	-40 °C			76 mm	1.24 in	2.99 in	31.5 mm	0.87 in	22.2 mm	3.3 V	DC	Adjustable Output Remote On/Off		18 V		75 V
CUI Inc. PYBE30-Q48-S15	55024 55032 Class A 60950-1	ITE (Commercial)	89 %	1.5 kV	2 A	CB Scheme EN IEC UL	1	Through Hole	75 V	30 Watts	80 ¯C	-40 °C	18 V	Isolated Module	50.8 mm	1 "	2 in	25.4 mm	0.46 in	11.8 mm	15 V		OCP OVP Remote On/Off SCP					6-DIP Module
CUI Inc. PYBE30-Q24-S5-DIN	55024 55032 Class A 60950-1	ITE (Commercial)	86 %	1.5 kV	6 A	CB Scheme EN IEC UL	1			30 Watts	80 ¯C	-40 °C			76 mm	1.24 in	2.99 in	31.5 mm	0.87 in	22.2 mm	5 V	DC	Adjustable Output Remote On/Off		9 V		36 V
CUI Inc. PYBE30-Q24-S24-DIN	55024 55032 Class A 60950-1	ITE (Commercial)	90 %	1.5 kV	1.25 A	CB Scheme EN IEC UL	1			30 Watts	80 ¯C	-40 °C			76 mm	1.24 in	2.99 in	31.5 mm	0.87 in	22.2 mm	24 V	DC	Adjustable Output Remote On/Off		9 V		36 V
CUI Inc. PYBE30-Q24-D5-T		ITE (Commercial)	86 %	1.5 kV		CE cURus	2	Chassis Mount	36 V	30 Watts	80 ¯C	-40 °C	9 V	Enclosed	76 mm	1.24 in	2.99 in	31.5 mm	0.83 "	21.2 mm	5 V			3 A		-5 V
