ANT-B20 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

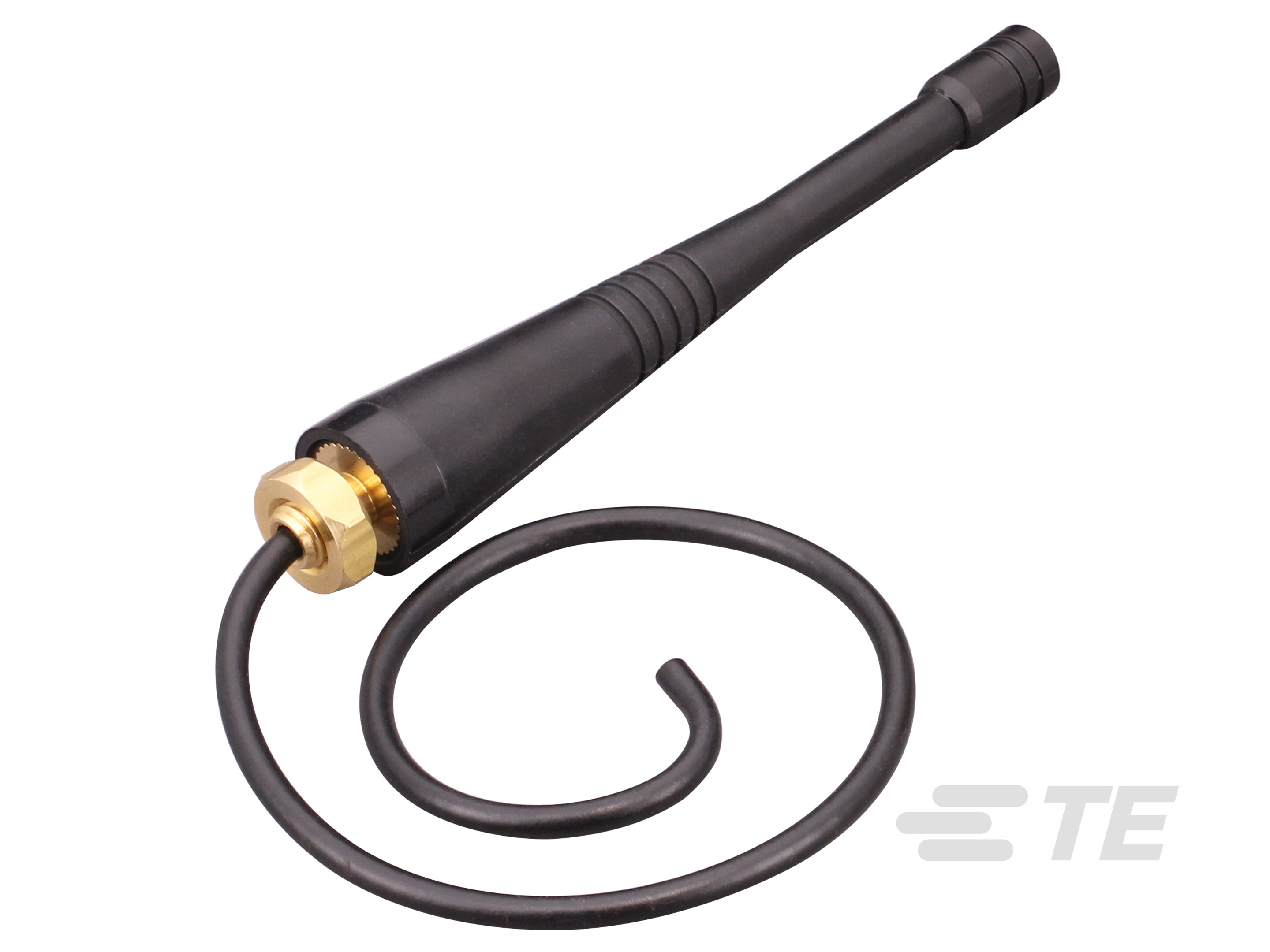

ANTENNA 1/4 WAVE WHIP LTE B20 RG174
| Part | Antenna Type | Height (Max) [z] | Termination | Number of Bands | RF Family/Standard | Applications | VSWR | Mounting Type | Power - Max [Max] | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Features | Frequency (Center/Band) | Gain | Frequency Range [Min] | Frequency Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Whip Straight | 3.531 in 89.7 mm | Solder | 1 | Cellular | Cellular GSM LTE NB-IoT UMTS | 2.1 | Panel Mount | 10 W | 1 GHz | UHF | 300 MHz | Cable - 216mm O-Ring Compatible | 826 MHz | 1.6 dBi | 790 MHz | 870 MHz |
 TE Connectivity AMP Connectors | Whip Straight | 3.531 in 89.7 mm | 1 | Cellular | LTE NB-IoT UMTS | 2.1 | Connector Mount | 10 W | 1 GHz | UHF | 300 MHz | O-Ring Compatible | 800 MHz 850 MHz | 1.6 dBi | 790 MHz | 870 MHz | |

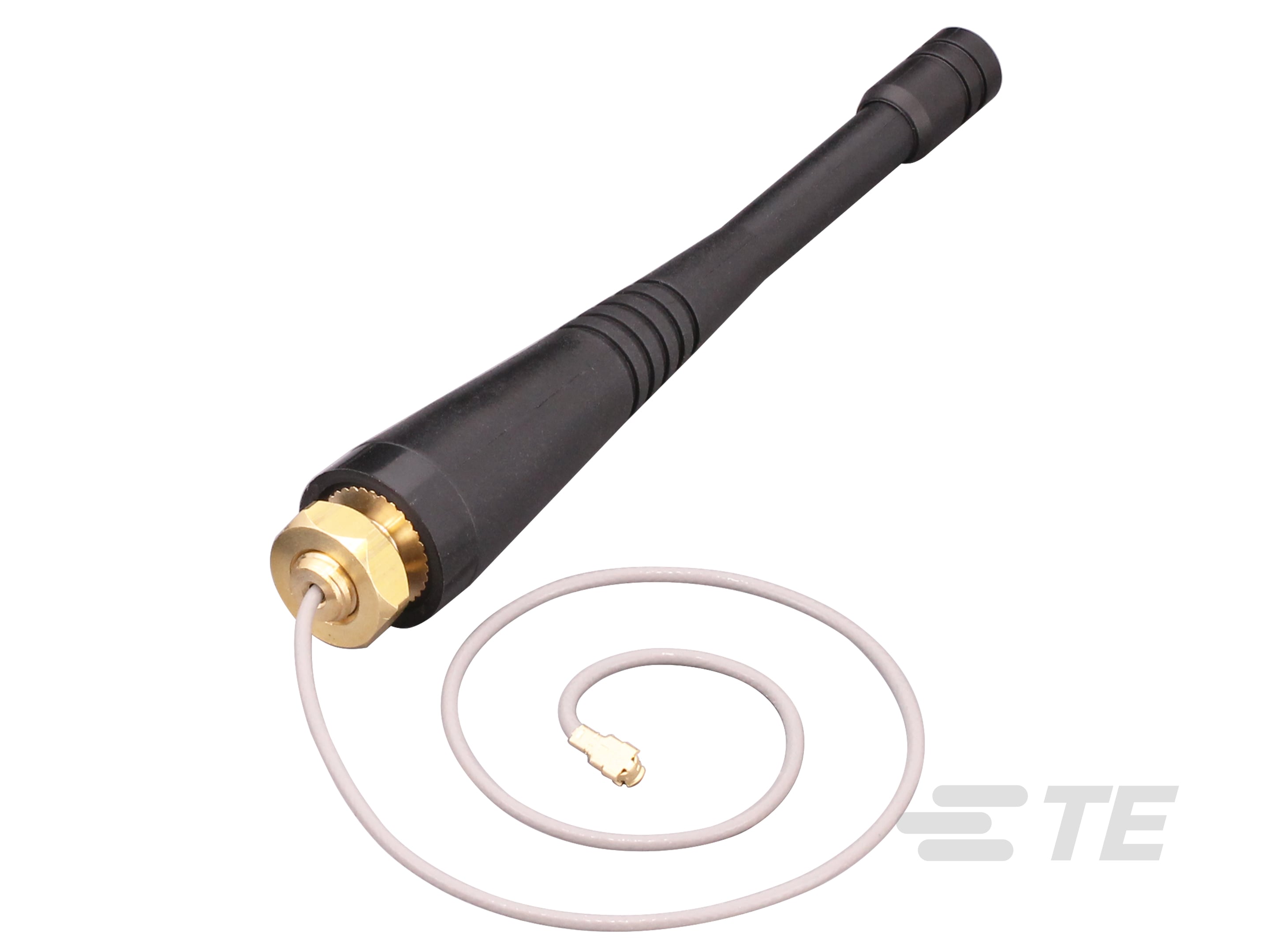

 TE Connectivity AMP Connectors | Whip Straight | 3.531 in 89.7 mm | I-PEX MHF1 U.FL (UMCC) | 1 | Cellular | Cellular GSM LTE NB-IoT UMTS | 2.1 | Panel Mount | 10 W | 1 GHz | UHF | 300 MHz | Cable - 216mm O-Ring Compatible | 826 MHz | 1.6 dBi | 790 MHz | 870 MHz |
