85012 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

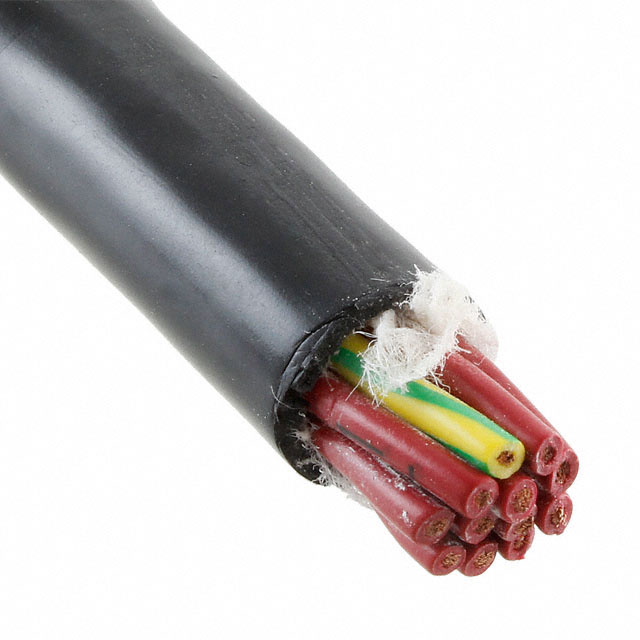

MULTICONDUCTOR CABLE, UNSHIELDED, 12 CONDUCTOR, 20 AWG, 0.5 MM², 1000 FT, 304.8 M
| Part | Conductor Insulation | Jacket Color | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material | Cable Type | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Black | 600 V | 105 | 38 AWG | 20 AWG | Copper Tinned | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 12 | 1.143 mm | 0.045 in | 1000 ft | 304.8 m | 11.68 mm | 0.46 in | UL Style 2587 | ||
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Black | 600 V | 105 | 38 AWG | 20 AWG | Copper Tinned | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 12 | 1.143 mm | 0.045 in | 11.68 mm | 0.46 in | UL Style 2587 | 30.5 m | 100 ft |
