Power Inductors - SMD 6.2uH 1.4A 80mOhms
Power Inductors - SMD 6.2uH 1.4A 80mOhms
| Part | DC Resistance (DCR) [Max] | Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Tolerance | Inductance Frequency - Test | Current - Saturation (Isat) | Inductance | Shielding | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

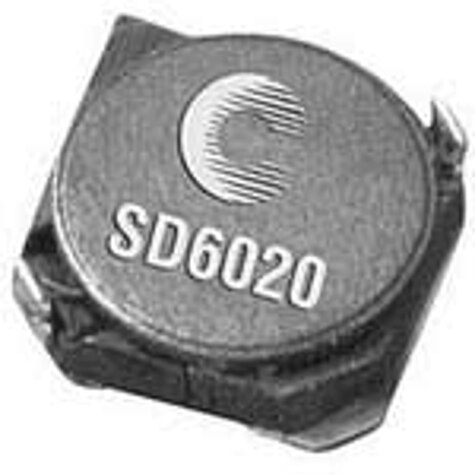

 Eaton - Electronics Division | 96 mOhm | Drum Core Wirewound | 1.63 A | 125 °C | -40 C | Ferrite | 30 % | 100 kHz | 1.4 A | 6.2 µH | Shielded | Surface Mount | 0.236 " | 6 mm | 0.236 in | 6 mm | 0.079 in | 2 mm | Nonstandard |
