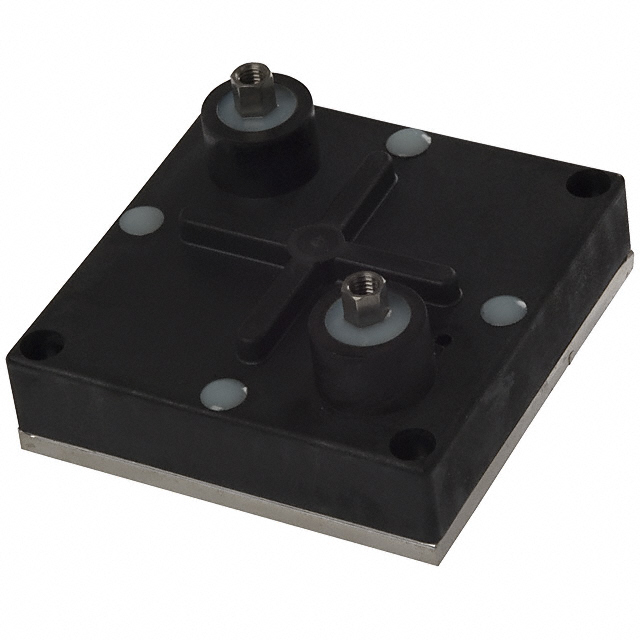

TAP1000 Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 1K WATT 1KOHM 10% HIGH POWER
| Part | Features | Lead Style | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature Coefficient | Coating, Housing Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Feature | Tolerance | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Resistance | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | Moisture Resistant | #10-32 Threaded | 39.31 mm | 1.548 in | 250 ppm/°C | Epoxy Coated | 3 " | 3 " | 76.2 mm | 76.2 mm | Flanges | 10 % | 1 kW | -55 C | 85 °C | 1000 Ohms | Thick Film |
Ohmite | Moisture Resistant | #10-32 Threaded | 39.31 mm | 1.548 in | 250 ppm/°C | Epoxy Coated | 3 " | 3 " | 76.2 mm | 76.2 mm | Flanges | 10 % | 1 kW | -55 C | 85 °C | 25 Ohms | Thick Film |
Ohmite | Moisture Resistant | #10-32 Threaded | 39.31 mm | 1.548 in | 250 ppm/°C | Epoxy Coated | 3 " | 3 " | 76.2 mm | 76.2 mm | Flanges | 10 % | 1 kW | -55 C | 85 °C | 8 Ohms | Thick Film |
