IN-P32 Series
Manufacturer: Inolux Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

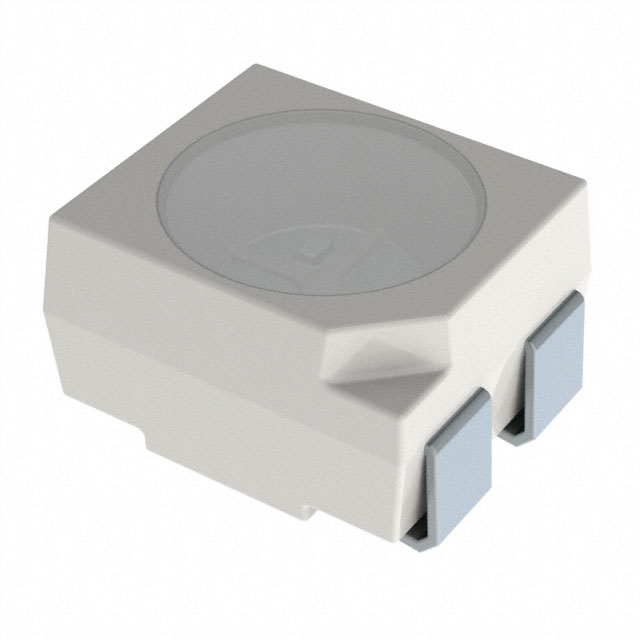

LED GREEN/RED CLEAR 4PLCC SMD
| Part | Height (Max) | Viewing Angle | Millicandela Rating Colors | Millicandela Rating (Green) | Millicandela Rating (Red) | Size / Dimension Width | Size / Dimension Length | Wavelength - Peak Colors | Wavelength - Peak (Red) | Wavelength - Peak (Green) | Lens Transparency | Package Name | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) (Green) | Configuration | Lens Color | Color | Package / Case | Mounting Type | Current - Test (Green) | Current - Test Colors | Current - Test (Red) | Lens Style | Wavelength - Dominant Color | Wavelength - Dominant (Green) | Wavelength - Dominant (Red) | Voltage - Forward (Vf) (Typ) | Lens Diameter | Wavelength - Dominant | Wavelength - Peak | Current - Test | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inolux Corporation | 1.9 mm | 120 ° | Green Red | 1400 mcd | 285 mcd | 2.8 mm | 3.2 mm | Green Red | 630 nm | 530 nm | Clear | 4-PLCC | Green Red | 2.2 V | 3.2 V | Independent | Colorless | Green Red | 4-PLCC | Surface Mount | 20 mA | Green Red | 20 mA | Flat Top Round | Green Red | 522 nm | 622 nm | ||||||

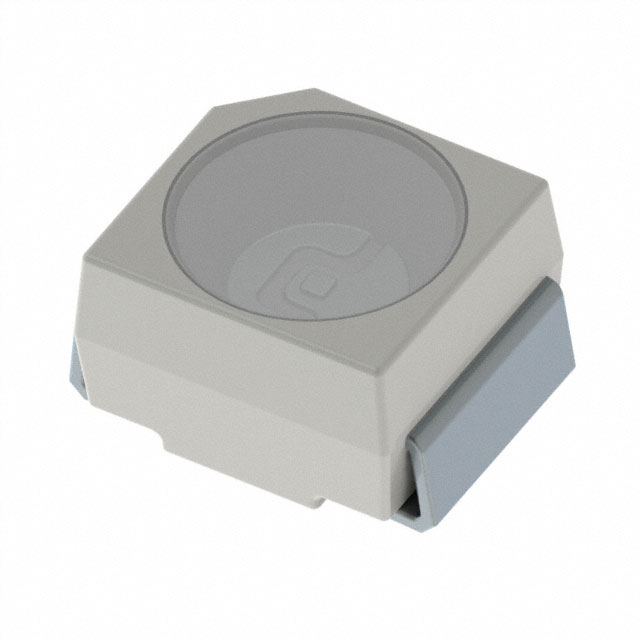

 Inolux Corporation | 1.9 mm | 120 ° | 2.8 mm | 3.2 mm | Clear | 2-PLCC | Standard | Colorless | Red | 2-PLCC | Surface Mount | Flat Top Round | 2 V | 2.4 mm | 622 nm | 628 nm | 20 mA | 285 mcd |
