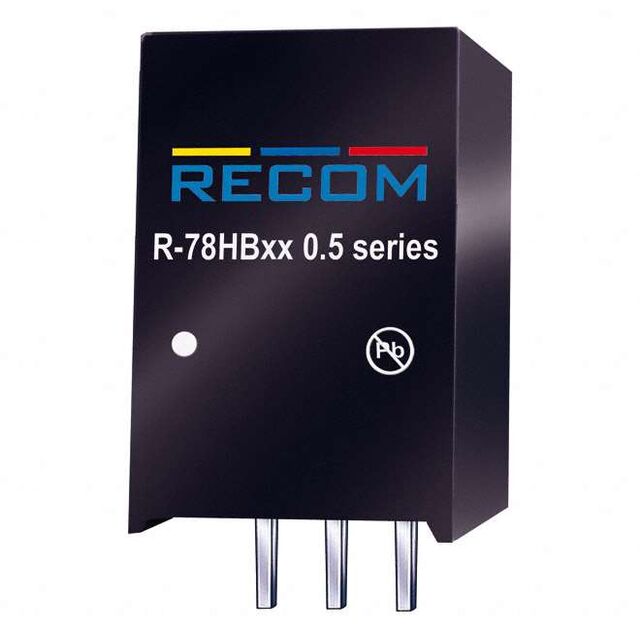

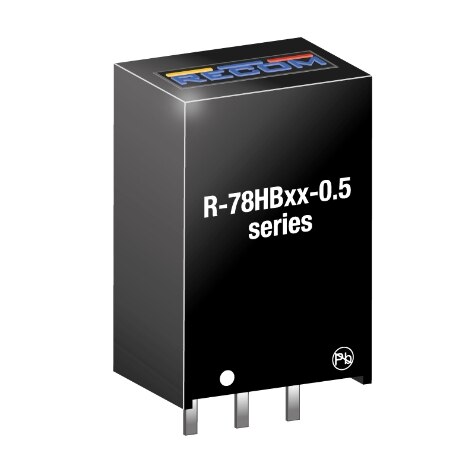

R-78HB Series
Manufacturer: Recom Power
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 0.5A DC/DC REG 14-72VIN 9VOUT
| Part | Voltage - Input (Max) [Max] | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Type | Power (Watts) | Voltage - Input (Min) [Min] | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Through Hole | 85 °C | -40 C | 92 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | Linear Regulator Replacement | 5 W | 14 V | OTP SCP | 9 V |
Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Through Hole | 85 °C | -40 C | 94 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | Linear Regulator Replacement | 6 W | 17 V | OTP SCP | 12 V |
 Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Through Hole | 85 °C | -40 C | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | Linear Regulator Replacement | 2 W | 9 V | OTP SCP | 3.3 V | |
 Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Right Angle Through Hole | 85 °C | -40 C | 91 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | Linear Regulator Replacement | 3.25 W | 9 V | OTP SCP | 6.5 V |
 Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Through Hole | 85 °C | -40 C | 87 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | Linear Regulator Replacement | 3 W | 9 V | OTP SCP | 5 V |
Recom Power | 72 V | 1 | 3-SIP Module | 0.3 A | ITE (Commercial) | Right Angle Through Hole | 85 °C | -40 C | 96 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | Linear Regulator Replacement | 7.2 W | 36 V | OTP SCP | 24 V |
Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Through Hole | 85 °C | -40 C | 91 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | Linear Regulator Replacement | 3 W | 9 V | OTP SCP | 6.5 V |
Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Right Angle Through Hole | 85 °C | -40 C | 94 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | Linear Regulator Replacement | 6 W | 17 V | OTP SCP | 12 V |
 Recom Power | 72 V | 1 | 500 mA | ITE (Commercial) | Chassis Mount | 85 °C | -40 C | 93 % | 24 mm | 0.38 " | 0.48 in | 9.7 mm | 12.1 mm | 0.94 " | Linear Regulator Replacement | 6 W | 17 V | 12 V | ||
Recom Power | 72 V | 1 | 3-SIP Module | 500 mA | ITE (Commercial) | Right Angle Through Hole | 85 °C | -40 C | 92 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | Linear Regulator Replacement | 4.5 W | 14 V | OTP SCP | 9 V |
