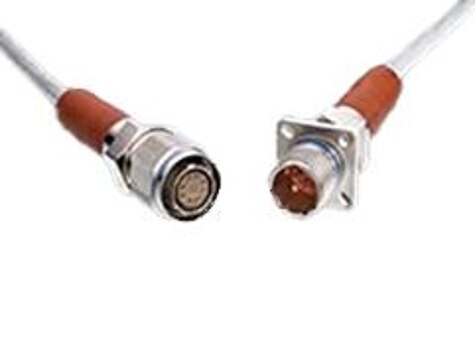

CFX24 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CIRCULAR MIL SPEC CONNECTOR RECP ASSY
| Part | Insert Material | Ingress Protection | Fastening Type | Contact Material | Mounting Feature | Shell Material | Shell Finish | Shielding | Contact Finish - Mating | Connector Type | Primary Material | Backshell Material, Plating | Current Rating (Amps) | Shell Size - Insert | Applications | Color | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | Environment Resistant | Threaded | Copper Alloy | Bulkhead - Front Side Nut | Aluminum | Olive Drab Cadmium | Unshielded | Gold | Receptacle Male Pins | Metal | Aluminum Alloy Olive Drab Cadmium | 5 A | 11-8 | Aerospace Military | Olive Drab | Crimp | Backshell | -65 ░C | 200 °C | 8 | Free Hanging (In-Line) Panel Mount | N (Normal) |
