7840 Series

Catalog

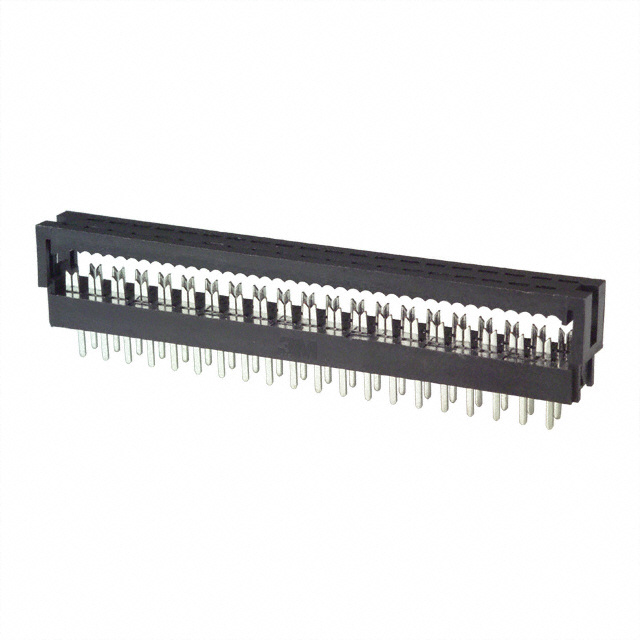

CONN DIP HDR IDC 40P VERT

Part	Number of Positions Loaded	Row Spacing	Row Spacing	Contact Finish	Board-Side Pitch	Board-Side Pitch	Connector Type	Number of Rows [custom]	Mounting Type	Cable Pitch	Cable Pitch	Number of Positions	Cable Termination	Wire Gauge	Contact Finish Thickness	Features	Color
3M Electronic Specialty 7840-0006PR	All	2.54 mm	0.1 "	Gold	2.54 mm	0.1 "	DIP Header Ribbon Cable	2	Through Hole	1.27 mm	0.05 in	40	IDC	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Flash	Feed Through	Gray
3M Electronic Specialty 7840-0000PR	All	2.54 mm	0.1 "	Gold	2.54 mm	0.1 "	DIP Header Ribbon Cable	2	Through Hole	1.27 mm	0.05 in	40	IDC	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Flash	Feed Through	Gray
3M Electronic Specialty 7840-0000T	All	2.54 mm	0.1 "	Tin	2.54 mm	0.1 "	DIP Header Ribbon Cable	2	Through Hole	1.27 mm	0.05 in	40	IDC	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid		Feed Through	Gray
