3473 Series

Catalog

CONN IDC CONNECTOR SKT 10 POS 1.27MM IDT RA CABLE MOUNT

Part	Mounting Type	Cable Termination	Pitch	Pitch	Connector Type	Wire Type	Features	Contact Type	Number of Rows [custom]	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Row Spacing	Row Spacing	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]
3M Electronic Specialty 3473-6600	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Feed Through Polarizing Key	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3473-6010	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Strain Relief	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	28 AWG	Stranded or Solid	26 AWG

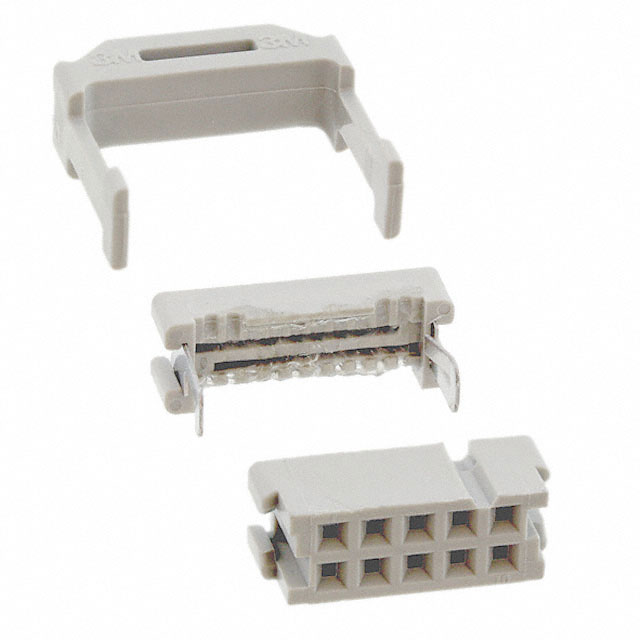

3M Electronic Specialty 3473-7010	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Closed End Strain Relief	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "
3M Electronic Specialty 3473-G000	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Feed Through	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "

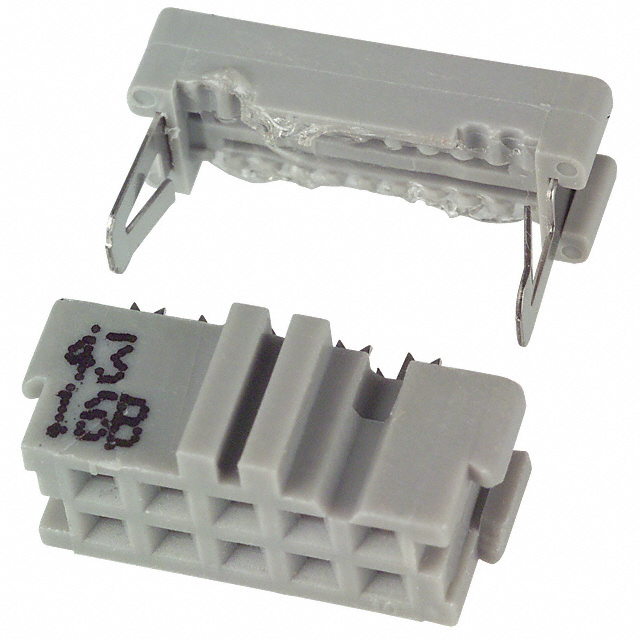

3M Electronic Specialty 3473-7600	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable		Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "

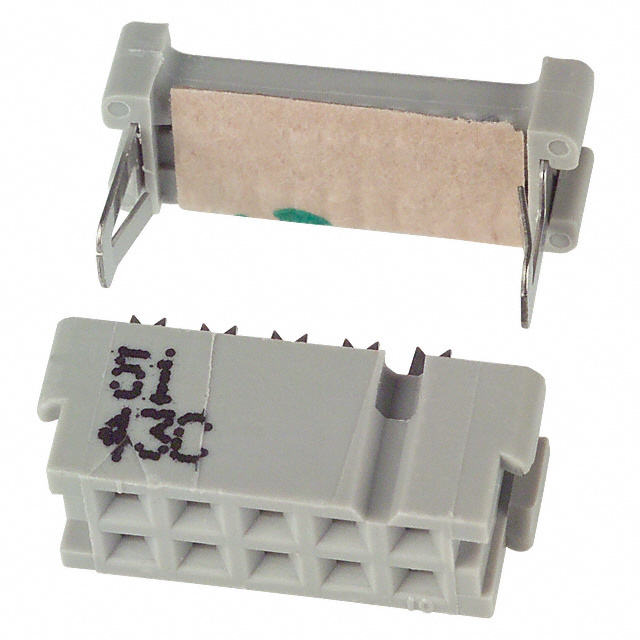

3M Electronic Specialty 3473-6000	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Feed Through	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "

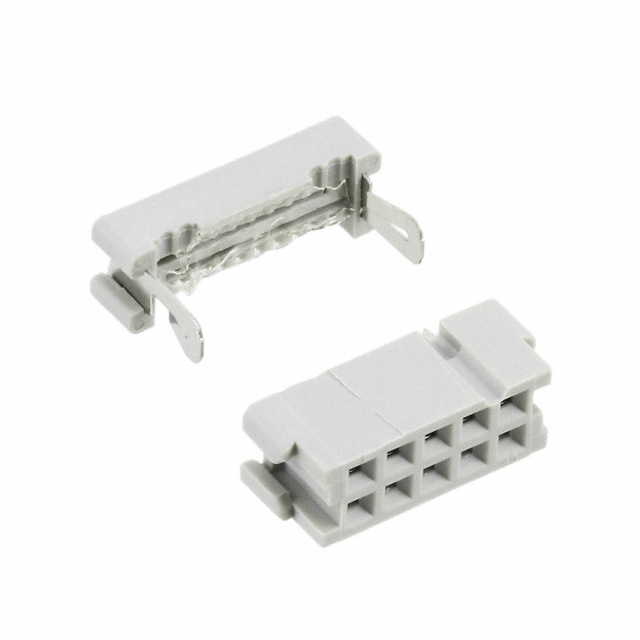

3M Electronic Specialty 3473-7000	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Closed End	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "
3M Electronic Specialty 3473-7610	Free Hanging (In-Line)	IDC	0.1 "	2.54 mm	Receptacle	Ribbon Cable	Closed End Polarizing Key Strain Relief	Female Socket	2	10	Gray	30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "
