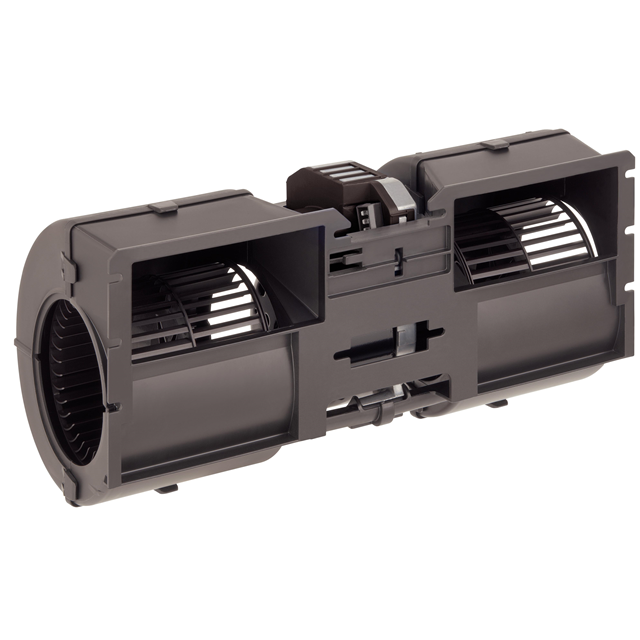

K3G097 Series

Catalog

FAN BLOWER CF 139.5X351MM 26VDC

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Air Flow	Air Flow	Current Rating (Amps)	Voltage - Rated	Termination	RPM	Fan Type	Width [x]	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Weight	Weight	Noise	Size / Dimension [y]	Static Pressure	Static Pressure

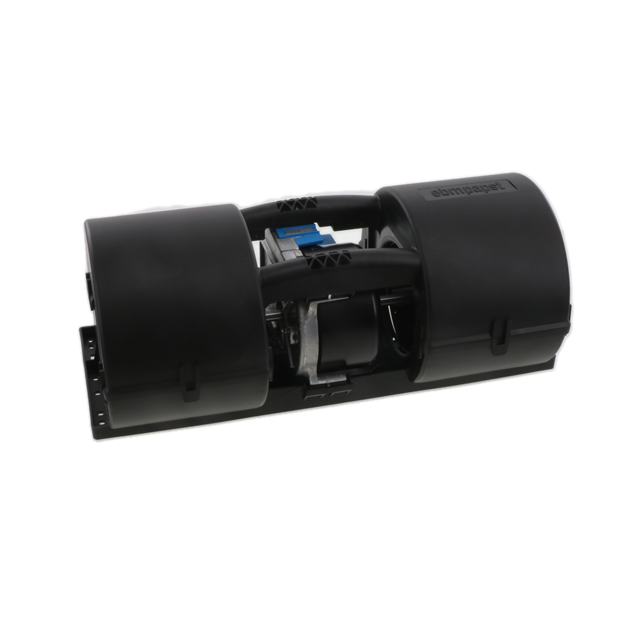

ebm-papst Inc. K3G097-AK34-65	32 V	16 VDC	Polyamide (PA) Nylon	Polypropylene (PP)	11.63 mł/min	415.2 CFM	15.2 A	26 VDC	6 Position Rectangular Connector	3830 RPM	Blower Centrifugal (Dual)	351 mm	EAC	Rectangular/Rounded	139.5 mm	170.5 mm	394 W	Ball	-40 C	70 °C	70 °C	-40 °C	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)
ebm-papst Inc. K3G097-BP46-01	32 V	16 VDC	Polyamide (PA) Nylon	Polypropylene (PP)	18.54 m³/min	662.1 CFM	11.8 A	26 VDC		3600 RPM	Blower Centrifugal (Dual)	335 mm	EAC	Rectangular/Rounded	144.3 mm		310 W	Ball	-40 C		85 °C		Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)	2 kg	4.5 lbs	79 dB(A)	163.5 mm
ebm-papst Inc. K3G097-AK68-85	32 V	16 VDC	Polyamide (PA) Nylon	Nylon Polyamide (PA)	12.37 m³/min	441.8 CFM	26.5 A	26 VDC	4 Position Rectangular Connector	4600 RPM	Blower Centrifugal (Dual)	351 mm	EAC	Rectangular/Rounded	139.5 mm	170.5 mm	690 W	Ball	-40 C	60 °C	60 °C	-40 °C	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)			75 dB(A)

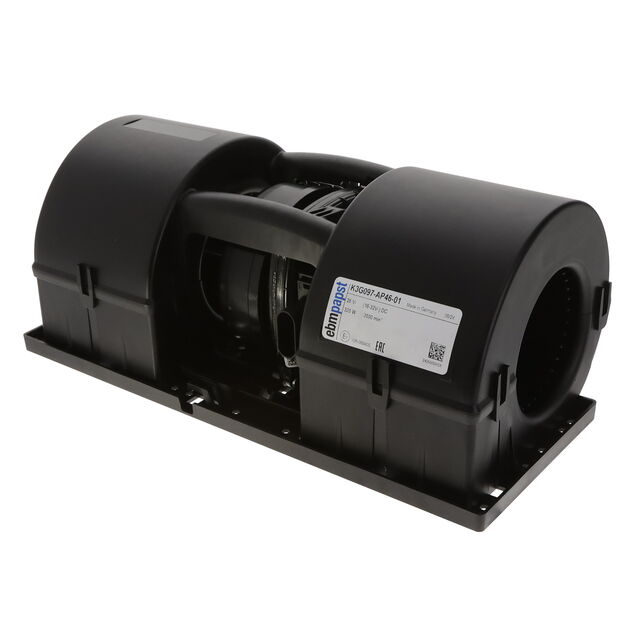

ebm-papst Inc. K3G097-AP46-01	32 V	16 VDC	Polyamide (PA) Nylon	Polypropylene (PP)	8.25 m³/min	294.5 CFM	12.2 A	26 VDC	4 Position Rectangular Connector	3500 RPM	Blower Centrifugal (Dual)	351 mm	EAC	Rectangular/Rounded	139.5 mm	170.5 mm	320 W	Ball					Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)			70 dB(A)		2.377 in H2O	592 Pa
