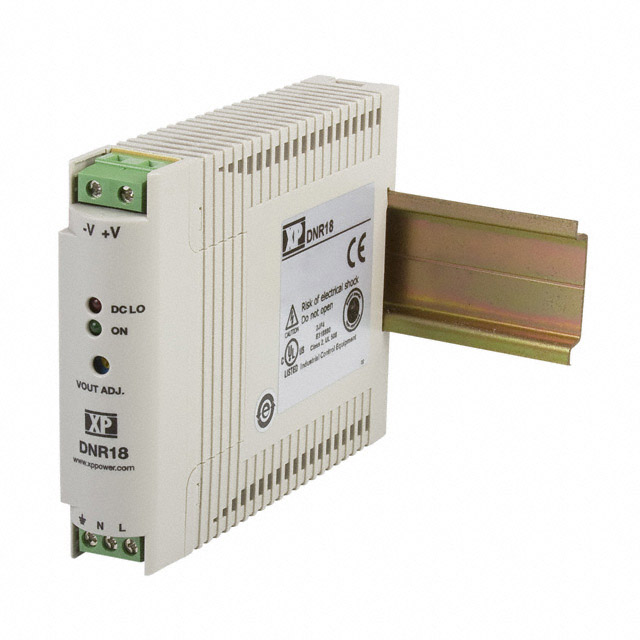

DNR18 Series

Manufacturer: XP Power

Catalog

AC/DC DIN RAIL SUPPLY 12V 18W

Part	Features	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	Applications	Voltage - Output 1	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Efficiency
XP Power DNR18US12-S	Adjustable Output Universal Input	375 V	90 VAC	264 VAC	AC or DC	CE	70 °C	-20 °C	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	120 V	Hazardous Locations Industrial ITE (Commercial)	12 V	62368-1	3000 V	1.5 A	1	77 %
XP Power DNR18US12	Adjustable Output Universal Input	375 V	90 VAC	264 VAC	AC or DC	CE	70 °C	-20 °C	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	120 V	Hazardous Locations Industrial ITE (Commercial)	12 V	62368-1	3000 V	1.5 A	1	77 %
XP Power DNR18US24	Adjustable Output Universal Input	375 V	90 VAC	264 VAC	AC or DC	CE	70 °C	-20 °C	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	120 V	Hazardous Locations Industrial ITE (Commercial)	24 V	62368-1	3000 V	750 mA	1	77 %
XP Power DNR18US05-S	Adjustable Output Universal Input	375 V	90 VAC	264 VAC	AC or DC	CE	70 °C	-20 °C	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	120 V	Hazardous Locations Industrial ITE (Commercial)	5 V	62368-1	3000 V	3 A	1	75 %
