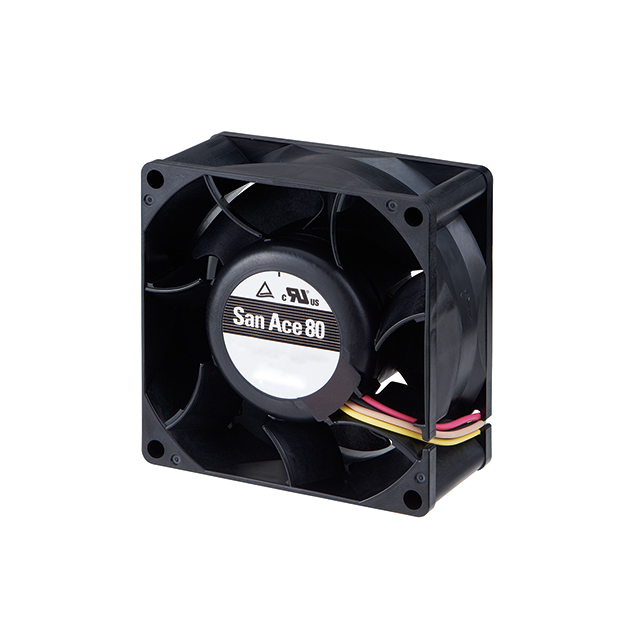

9HVA0812 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
DC FAN AXIAL BALL BEARING 12V 10.8V TO 13.2V 132CFM 73DB 80 X 80 X 38MM PWM/SENSOR
| Part | Material - Blade | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Power (Watts) | Fan Type | Width [y] | Size / Dimension [z] | Size / Dimension [x] | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Approval Agency | Static Pressure | Static Pressure | Termination | Bearing Type | Features | Noise | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 132 CFM | 3.7 m³/min | 10.8 VDC | 13.2 VDC | 3.5 A | 40000 Hrs | Plastic | 42 W | Tubeaxial | 38 mm | 80 mm | 80 mm | 16100 RPM | -20 ░C | 70 °C | 12 VDC | cURus TUV | 5.4 in H2O | 1345.1 Pa | 4 Wire Leads | Ball | PWM Control Speed Sensor (Tach) | 73 dB(A) | 219.99 g | 0.485 lb |
