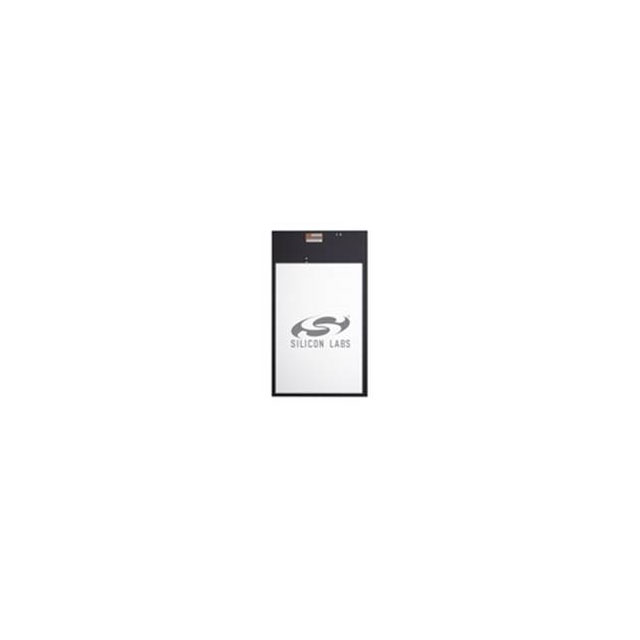

WGM160 Series

Catalog

RF TXRX MODULE WIFI SMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Package / Case	Serial Interfaces	Antenna Type	Mounting Type	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Max]	Current - Receiving [Min]	Sensitivity	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	RF Family/Standard	Data Rate
SILICON LABS WGM160P022KGN3R	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Antenna Not Included	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
SILICON LABS WGM160P022KGA3R	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Chip Integrated	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
SILICON LABS WGM160PX22KGA3	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Chip Integrated	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
SILICON LABS WGM160P022KGN3	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Antenna Not Included	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
SILICON LABS WGM160PX22KGA3R	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Chip Integrated	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps

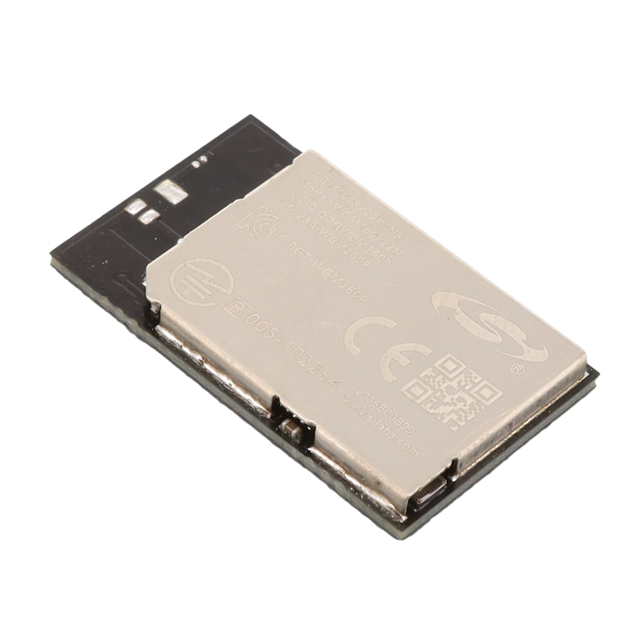

SILICON LABS WGM160PX22KGN3	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Antenna Not Included	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps

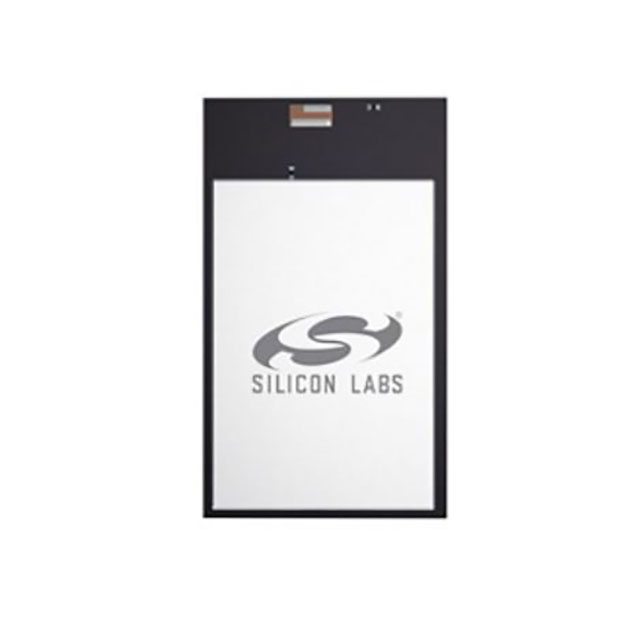

SILICON LABS WGM160P022KGA3	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Chip Integrated	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
SILICON LABS WGM160PX22KGN3R	3.6 V	3 V	2 MB 512 kB	55-SMD Module	Ethernet I2C SPI UART USART USB	Antenna Not Included	Surface Mount	131.4 mA	141.3 mA	38.5 mA	34.5 mA	-95.5 dBm	802.11b/g/n	85 C	-40 ¯C	2.412 GHz	2.484 GHz	WiFi	72.2 Mbps
