Q8F5CXXHR Series

Manufacturer: APEM Inc.

Catalog

LED PANEL INDICATOR, RED, 8MM, 12VDC ROHS COMPLIANT: YES

Part	Lamp Color	Lens Transparency	Type	Panel Cutout Shape	Voltage	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Ratings	Lens Style	Termination Style	Lens Size [diameter]	Viewing Angle	Current	Millicandela Rating

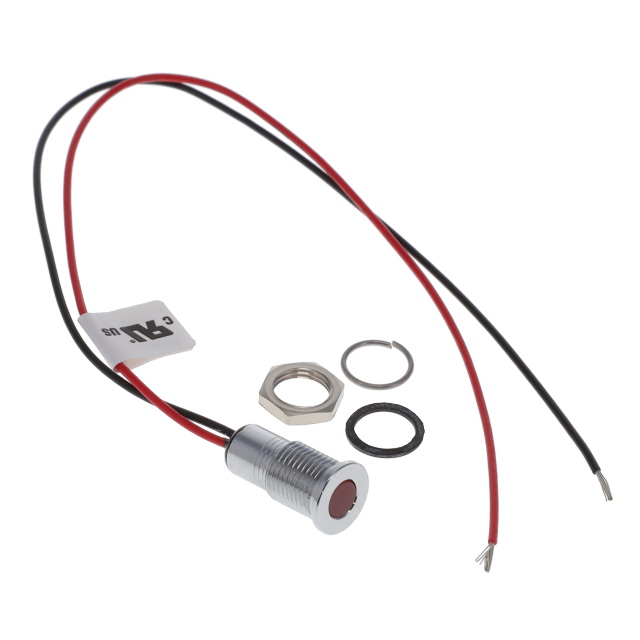

APEM Inc. Q8F5CXXHR12E	Red	Diffused	LED	Round	12 V	Red	0.315 in	8 mm	IP67	DC	Round with Flat Top	Wire Leads - 7.87" (200.00mm)	5 mm	100 °	20 mA	980 mcd

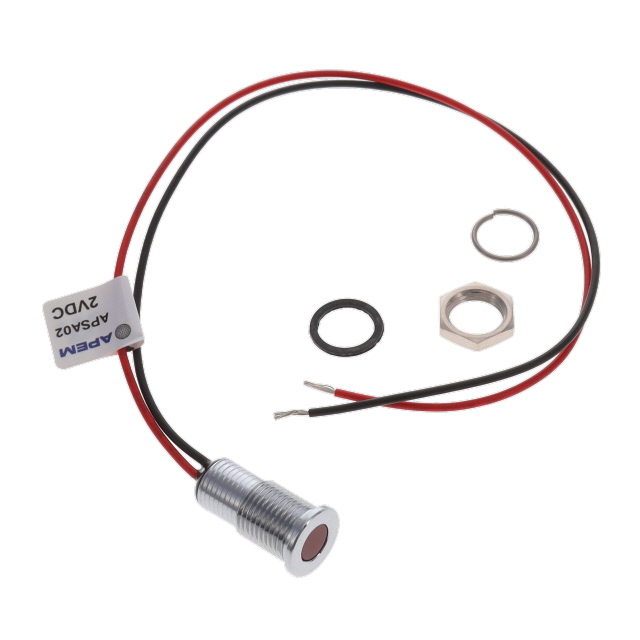

APEM Inc. Q8F5CXXHR02E	Red	Diffused	LED	Round	2 V	Red	0.315 in	8 mm	IP67		Round with Flat Top	Wire Leads - 7.87" (200.00mm)	5 mm	100 °	20 mA	980 mcd

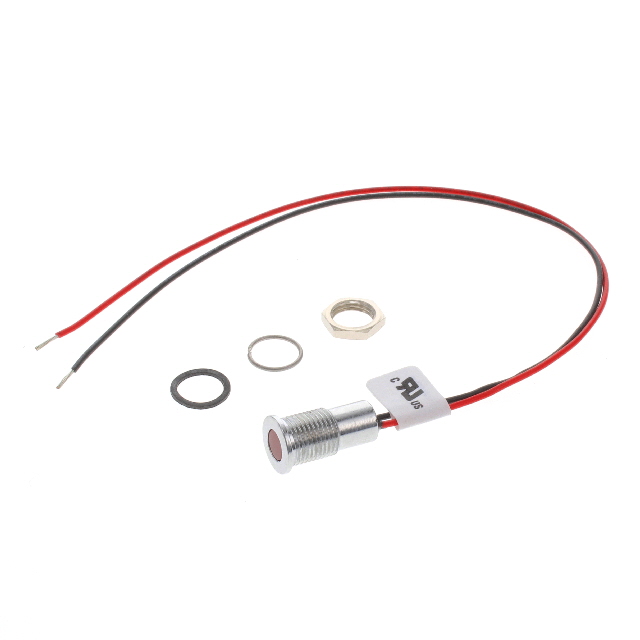

APEM Inc. Q8F5CXXHR24E	Red	Diffused	LED	Round	24 V	Red	0.315 in	8 mm	IP67	DC	Round with Flat Top	Wire Leads - 7.87" (200.00mm)	5 mm	100 °	20 mA	980 mcd
