OA225AN Series
Manufacturer: ORION FANS
Beta
⌘K

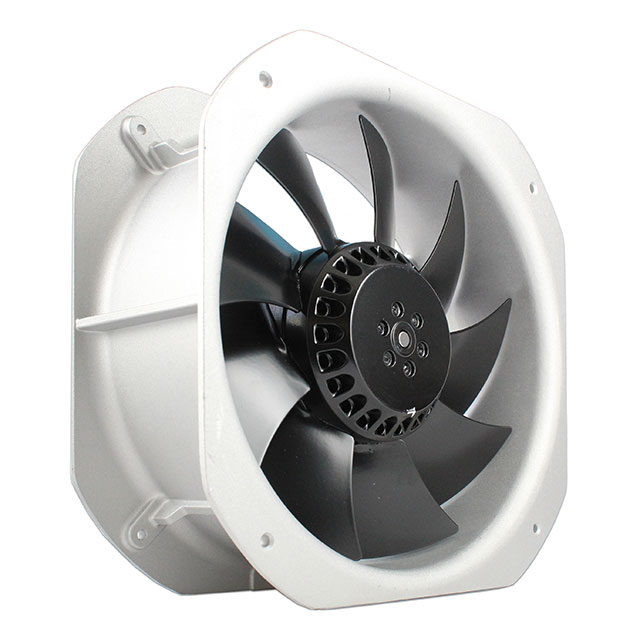

AC FANS AXIAL FAN, 225X225X80MM, 230VAC, 600CFM, 72W, 61DBA, BALL, TERMINAL, IP55
| Part | Air Flow | Air Flow | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Approval Agency | Noise | Size / Dimension [x] | Size / Dimension [z] | Features | Ingress Protection | Weight | Weight | Power (Watts) | RPM | Voltage - Rated | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Width [y] | Bearing Type | Fan Type | Termination | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 600 CFM | 16.8 mł/min | Aluminum | 0.35 A | Metal | 40000 Hrs | cURus TUV | 61 dB(A) | 225 mm | 225 mm | Capacitor Thermal Overload Protector (TOP) | IP55 - Dust Protected Water Resistant | 4.7 lbs | 2.1 kg | 80 W | 2800 RPM | 230 VAC | 166.9 Pa | 0.67 in H2O | 80 °C | -40 C | 80 mm | Ball | Tubeaxial | Terminal Block | ||
 ORION FANS | 600 CFM | 16.8 mł/min | Aluminum | 0.7 A | Metal | 40000 Hrs | cURus TUV | 61 dB(A) | 225 mm | 225 mm | Capacitor Thermal Overload Protector (TOP) | IP55 - Dust Protected Water Resistant | 4.7 lbs | 2.1 kg | 72 W | 2800 RPM | 115 VAC | 166.9 Pa | 0.67 in H2O | 80 °C | -40 C | 80 mm | Ball | Tubeaxial | Terminal Block | 100 VAC | 125 VAC |
