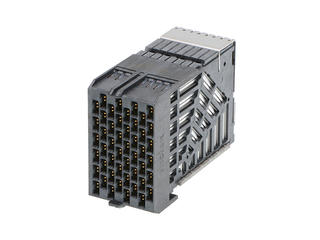

Impulse 90 Ohm 6-Pair Orthogonal Daughtercard, 2.00mm Pitch, Unguided, 8 Columns, 48 Differential Pair
Impulse 90 Ohm 6-Pair Orthogonal Daughtercard, 2.00mm Pitch, Unguided, 8 Columns, 48 Differential Pair
Impulse 90 Ohm 6-Pair Orthogonal Daughtercard, 2.00mm Pitch, Unguided, 8 Columns, 48 Differential Pair
| Part | Number of Rows | Number of Columns | Connector Type | Contact Finish | Connector Usage | Number of Positions Loaded | Number of Positions | Contact Layout, Typical | Color | Mounting Type | Pitch [x] | Pitch [x] | Termination | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 12 | 8 | Blade Sockets Female Sockets Receptacle | Gold | Daughtercard Orthogonal | All | 96 | 48 Differential Pairs | Black | Right Angle Through Hole | 0.079 in | 2 mm | Press-Fit | |

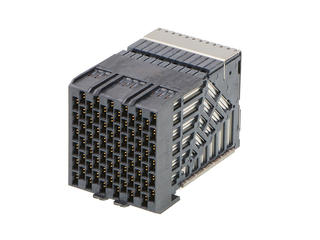

 Molex | 12 | 12 | Blade Sockets Female Sockets Receptacle | Gold | Daughtercard Orthogonal | All | 144 | Black | Right Angle Through Hole | 0.079 in | 2 mm | Press-Fit | 72 Differential Pairs |
