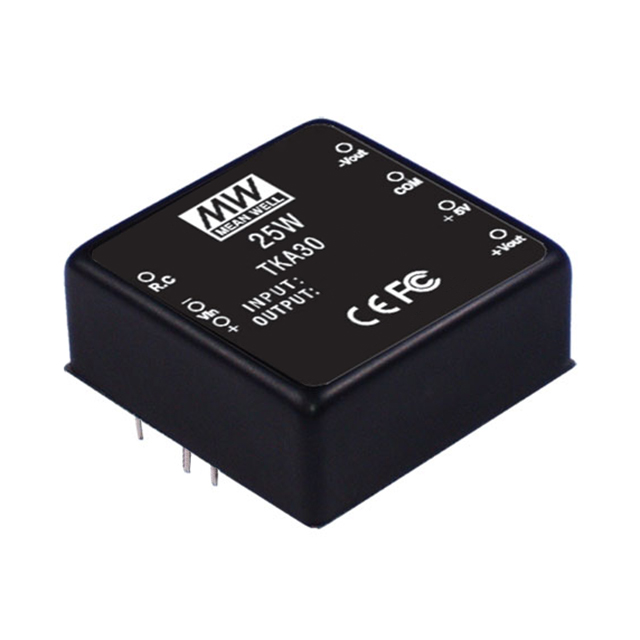

TKA30 Series

Catalog

DC DC CONVERTER +/-15V 7.5W

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Input (Max) [Max]	Applications	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Output 2	Package / Case	Voltage - Input (Min) [Min]	Type	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Current - Output (Max)
MEAN WELL USA Inc. TKA30B-C	15 V	-40 °C	85 °C	250 mA	36 V	ITE (Commercial)	OCP Remote On/Off SCP	7.5 W	2 in	0.83 "	21 mm	2 in	50.8 mm	50.8 mm	2	-15 V	8-DIP Module	18 V	Isolated Module	Through Hole	1000 V
MEAN WELL USA Inc. TKA30A-C	5 V	-40 °C	85 °C		18 V	ITE (Commercial)	OCP Remote On/Off SCP	18 W	2 in	0.83 "	21 mm	2 in	50.8 mm	50.8 mm	1		8-DIP Module	9 V	Isolated Module	Through Hole	1000 V	3.5 A	80 %
MEAN WELL USA Inc. TKA30A-B	5 V	-40 °C	85 °C		18 V	ITE (Commercial)	OCP Remote On/Off SCP	18 W	2 in	0.83 "	21 mm	2 in	50.8 mm	50.8 mm	1		8-DIP Module	9 V	Isolated Module	Through Hole	1000 V	3.5 A	80 %
MEAN WELL USA Inc. TKA30B-B	12 V	-40 °C	85 °C	310 mA	36 V	ITE (Commercial)	OCP Remote On/Off SCP	7.4 W	2 in	0.83 "	21 mm	2 in	50.8 mm	50.8 mm	2	-12 V	8-DIP Module	18 V	Isolated Module	Through Hole	1000 V			310 mA
