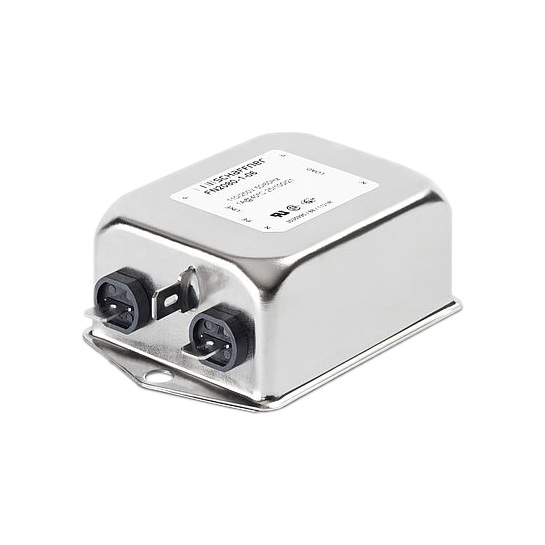

Schaffner FN2080 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 110V/250VAC 12A CHAS

Part	Frequency - Operating	Inductance	Filter Type	Current	Approval Agency	Voltage - Rated AC	Termination Style	Mounting Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Applications

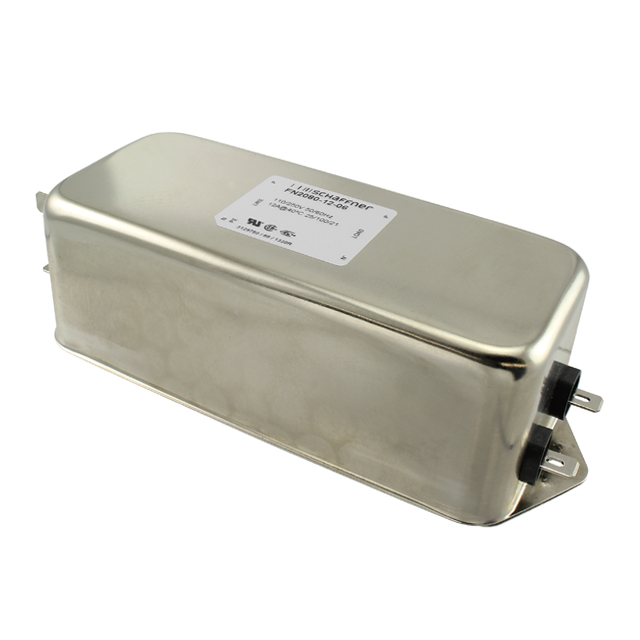

TE Connectivity AMP Connectors FN2080-12-06	DC ~ 400Hz	3.25 mH	Single Phase	12 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
TE Connectivity AMP Connectors FN2080A-16-06	DC ~ 400Hz	2.8 mH	Single Phase	16 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	Safety
TE Connectivity AMP Connectors FN2080-16-06	DC ~ 400Hz	2.8 mH	Single Phase	16 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose

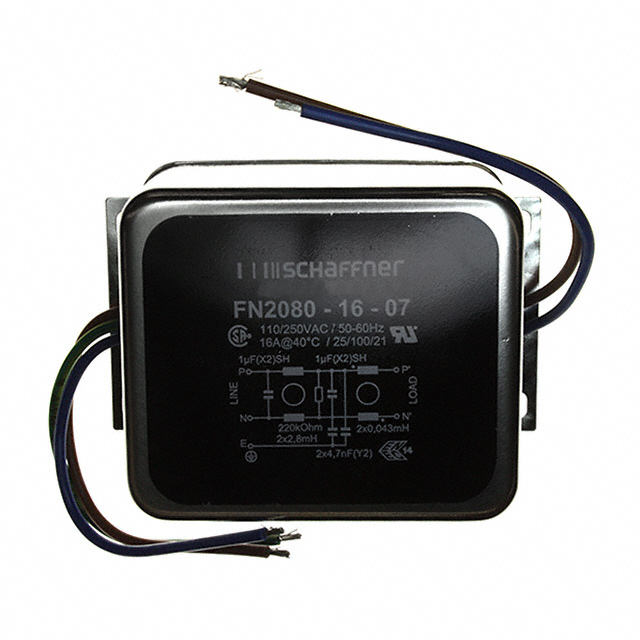

TE Connectivity AMP Connectors FN2080-16-07	DC ~ 400Hz	2.8 mH	Single Phase	16 A	CSA ENEC UR	110 V 250 V	Wire Leads	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
TE Connectivity AMP Connectors FN2080-12-07	DC ~ 400Hz	3.25 mH	Single Phase	12 A	CSA ENEC UR	110 V 250 V	Wire Leads	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
TE Connectivity AMP Connectors FN2080B-10-06	DC ~ 400Hz	4.5 mH	Single Phase	10 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
TE Connectivity AMP Connectors FN2080B-16-06	DC ~ 400Hz	2.8 mH	Single Phase	16 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
TE Connectivity AMP Connectors FN2080A-10-06	DC ~ 400Hz	4.5 mH	Single Phase	10 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	Safety
TE Connectivity AMP Connectors FN2080M-16-06	DC ~ 400Hz	2.8 mH	Single Phase	16 A	CSA ENEC UR	110 V 250 V	Quick Connect	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose

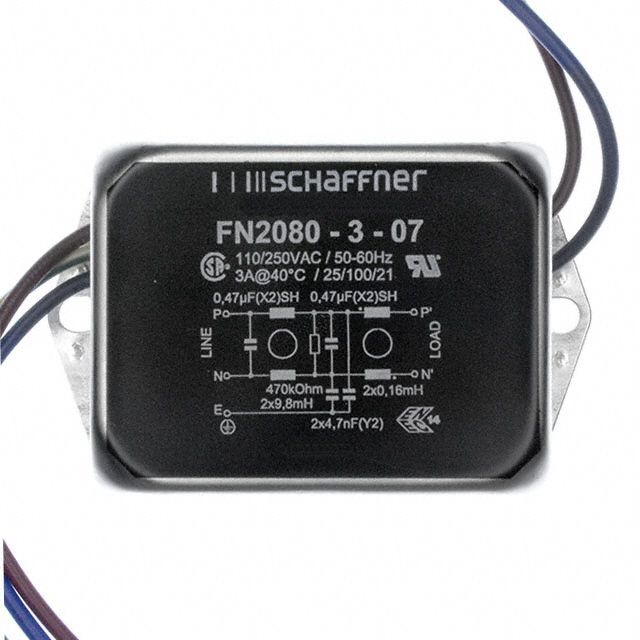

TE Connectivity AMP Connectors FN2080-3-07	DC ~ 400Hz	9.8 mH	Single Phase	3 A	CSA ENEC UR	110 V 250 V	Wire Leads	Chassis Mount	Two Stage	100 °C	-25 °C	General Purpose
