PTC26 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Number of Rows	Insulation Material	Contact Type	Current Rating (Amps)	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Contact Finish - Post	Contact Shape	Overall Contact Length	Overall Contact Length	Mounting Type	Style	Overall Contact Length	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

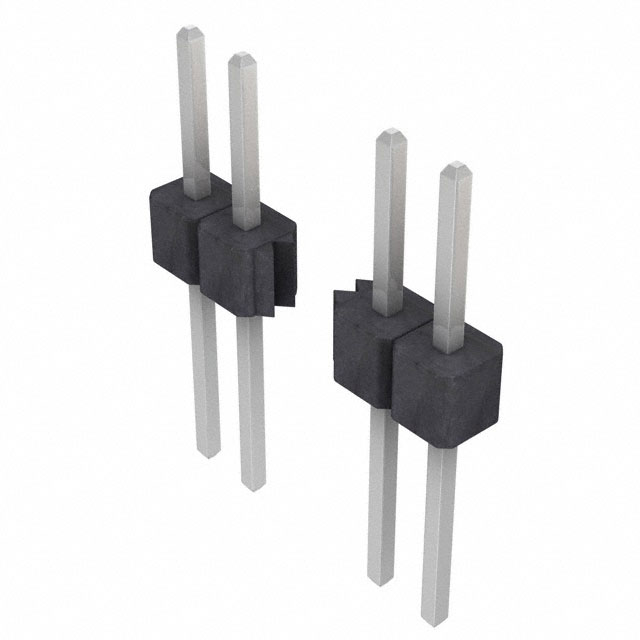

Sullins Connector Solutions PTC26SACN	1	Polyester Thermoplastic	Male Pin	3 A	Black	0.23 in	5.84 mm	Copper Alloy	Unshrouded	8.13 mm	0.32 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	26	100 çin	2.54 çm	Header	Solder	Tin	Square	16.51 mm	0.65 in	Through Hole	Board to Board Cable

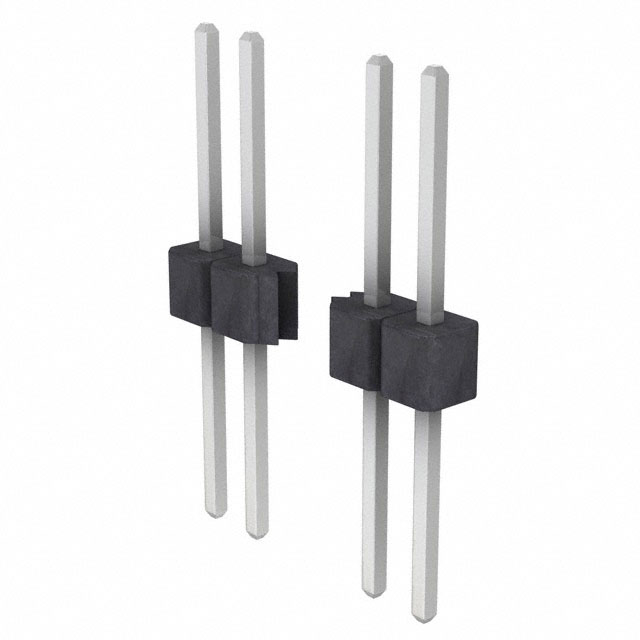

Sullins Connector Solutions PTC26SFCN	1	Polyester Thermoplastic	Male Pin	3 A	Black	0.318 in	8.08 mm	Copper Alloy	Unshrouded	8.13 mm	0.32 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	26	100 çin	2.54 çm	Header	Solder	Tin	Square	18.75 mm		Through Hole	Board to Board Cable	0.738 in
Sullins Connector Solutions PTC26DAAN		Polyester Thermoplastic	Male Pin	3 A	Black	0.23 in	5.84 mm	Copper Alloy	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	52	100 çin	2.54 çm	Header	Solder	Tin	Square			Through Hole	Board to Board Cable		2	11.43 mm	0.45 in	0.1 in	2.54 mm
Sullins Connector Solutions PTC26SFAN	1	Polyester Thermoplastic	Male Pin	3 A	Black	0.318 in	8.08 mm	Copper Alloy	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	26	100 çin	2.54 çm	Header	Solder	Tin	Square			Through Hole	Board to Board Cable			13.67 mm	0.538 in
Sullins Connector Solutions PTC26DAEN		Polyester Thermoplastic	Male Pin	3 A	Black	0.23 in	5.84 mm	Copper Alloy	Unshrouded	13.21 mm	0.52 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	52	100 çin	2.54 çm	Header	Solder	Tin	Square	21.59 mm	0.85 in	Through Hole	Board to Board Cable		2			0.1 in	2.54 mm
Sullins Connector Solutions PTC26SFBN	1	Polyester Thermoplastic	Male Pin	3 A	Black	0.318 in	8.08 mm	Copper Alloy	Unshrouded	5.58 mm	0.22 in	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	26	100 çin	2.54 çm	Header	Solder	Tin	Square	16.21 mm	0.638 in	Through Hole	Board to Board Cable
Sullins Connector Solutions PTC26DAFN		Polyester Thermoplastic	Male Pin	3 A	Black	0.23 in	5.84 mm	Copper Alloy	Unshrouded			0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	UL94 V-0	All	52	100 çin	2.54 çm	Header	Solder	Tin	Square	24.13 mm	0.95 in	Through Hole	Board to Board Cable		2			0.1 in	2.54 mm	15.75 mm	0.62 "
Sullins Connector Solutions PTC26DBCN		Polyester Thermoplastic	Male Pin	3 A	Black	0.23 in	5.84 mm	Copper Alloy	Unshrouded	8.13 mm	0.32 in	0.1 "	2.54 mm	Push-Pull			2.54 µm	100 µin	UL94 V-0	All	52	100 çin	2.54 çm	Header	Solder	Tin	Square			Right Angle Through Hole	Board to Board Cable		2			0.1 in	2.54 mm			6.1 mm	0.24 in

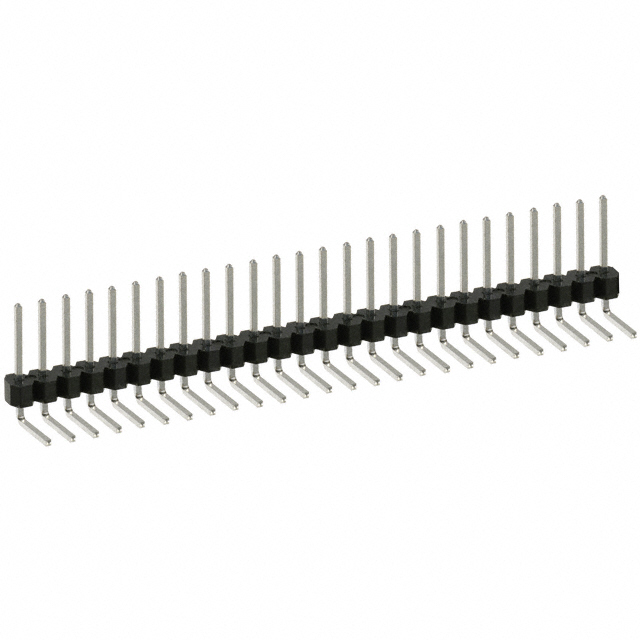

Sullins Connector Solutions PTC26SGBN	1	Polyester Thermoplastic	Male Pin	3 A	Black	0.318 in	8.08 mm	Copper Alloy	Unshrouded	5.58 mm	0.22 in	0.1 "	2.54 mm	Push-Pull	0.14 in	3.56 mm	2.54 µm	100 µin	UL94 V-0	All	26	100 çin	2.54 çm	Header	Solder	Tin	Square			Right Angle Through Hole	Board to Board Cable

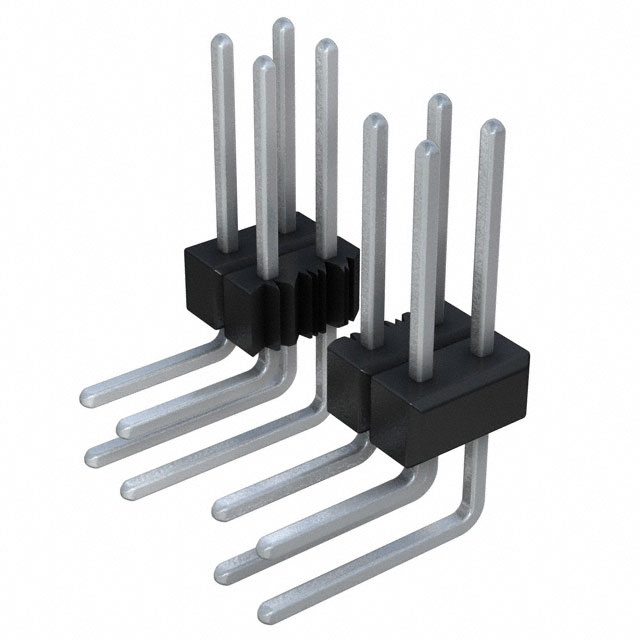

Sullins Connector Solutions PTC26DGBN		Polyester Thermoplastic	Male Pin	3 A	Black	0.318 in	8.08 mm	Copper Alloy	Unshrouded	5.58 mm	0.22 in	0.1 "	2.54 mm	Push-Pull			2.54 µm	100 µin	UL94 V-0	All	52	100 çin	2.54 çm	Header	Solder	Tin	Square			Right Angle Through Hole	Board to Board Cable		2			0.1 in	2.54 mm			6.1 mm	0.24 in
