A 24-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

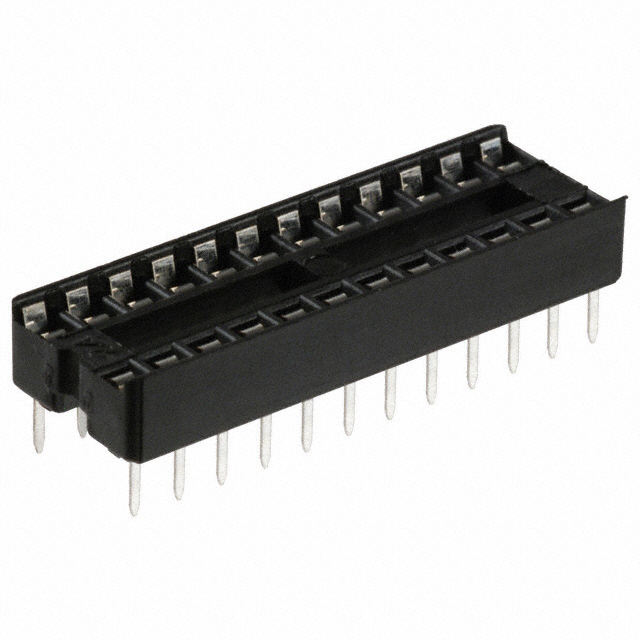

CONN IC DIP SOCKET 24POS TIN
| Part | Contact Finish - Post | Pitch - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Contact Material - Mating | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Row Spacing | Type | Housing Material | Pitch - Post | Termination | Mounting Type | Features | Contact Material - Post | Material Flammability Rating | Contact Resistance | Termination Post Length | Current Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Tin | 0.1 in | -55 °C | 85 °C | Tin | Phosphor Bronze | 2 | 24 | 12 | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | PBT Polybutylene Terephthalate | 0.1 in | Solder | Through Hole | Open Frame | Phosphor Bronze | UL94 V-0 | 30 mOhm | 0.124 in | 1 A | ||
 Assmann WSW Components | Tin | 0.1 in | -55 °C | 85 °C | Tin | Phosphor Bronze | 2 | 24 | 12 | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | PBT Polybutylene Terephthalate | 0.1 in | Solder | Through Hole | Open Frame | Phosphor Bronze | UL94 V-0 | 30 mOhm | 0.124 in | 1 A | 60 Ąin | 60 µin |
